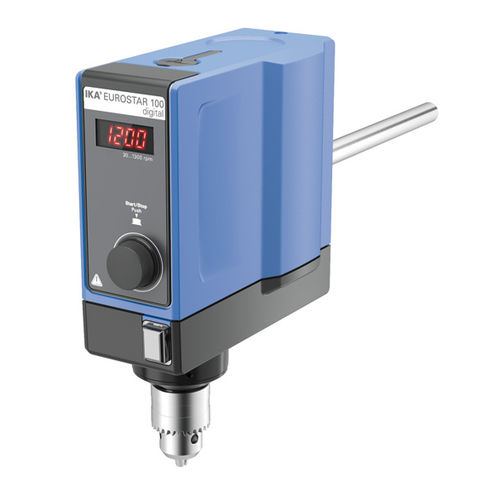

Overhead laboratory stirrer EUROSTAR 100

digital

Powerful laboratory stirrer for highly viscous applications and intensive mixing for quantities up to 100|150 l (H2O). Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample. • Digital speed display • Infinitely adjustable speed • Push-through agitator shafts • Overload protection • Short-term overload operation • Slim casing • Quiet operation • Error code display Technical Data Stirring quantity max. per stirring position (H2O): 100|100|200 liters Motor rating input: 186|130|220 W Motor rating output: 136|84|176 W Motor principle: Brushless DC Speed display: 7 segment LED Viscosity max.: 70000|100000 mPas Torque max. at stirring shaft: 100|200|400 Ncm Only for 200 and 400 digital: Torque I max.: 200|400 Ncm Torque II max.: 40|80 Ncm Speed control: stepless Setting accuracy speed: 1 ±rpm Deviation of speed measurement n > 300rpm: 1 ±% Deviation of speed measurement n < 300rpm: 3 ±rpm Stirring element fastening: chuck Chuck range diameter: 0.5 - 10 mm | 3 - 16 mm Hollow shaft, inner diameter: 10.3 mm Hollow shaft (push-through - when stopped): yes Extension arm diameter: 16 mm
