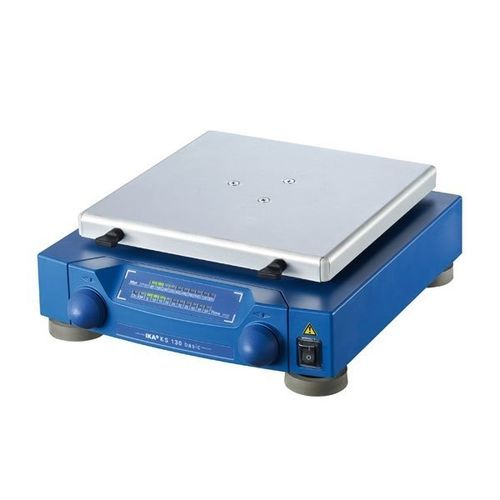

Orbital laboratory shaker KS 130 series

analogcompact

KS 130 basic | control | NOL Small, quiet orbital shaker ensures long life with ideal swivel motion, for a maximum shaking weight of 2 kg. • Electronic adjustment of speed and timer • LED display (basic) and digital display (control) • Wide range of attachment combinations makes it possible to use almost all shapes and sizes of vessels • Attachments are not included, please order separately Additional for control version: • Electronic time switching clock: 0 - 9 h 59min or continuous operation (endless) • With integrated end point positioning (for automated robot-controlled sampling) • All functions can be controlled and documented with labworldsoft® Additional for NOL version: • Electronic time switching clock: 0 - 9 h 59min or continuous operation (endless) • All functions can be controlled and documented with labworldsoft® • Special version with reverse rotating direction on request Technical Data Type of movement: orbital Shaker diameter: 4 mm Permissible shaking weight (incl. attachment): 2.0 kg Motor rating input: 45 W Motor rating output: 10 W Permissible ON time: 100 % Speed min (adjustable): 80 rpm Speed range: 0 - 800 rpm Speed display: LED line | LCD Timer: yes Timer display: LED line | LCD Time setting range: 5-50 min | 1-599 min Operating mode: timer and continuous operation Dimensions (W x H x D): 270 x 98 x 316 mm Weight: 8.8 kg | 9.8 kg Permissible ambient temperature: 5 - 50 °C Permissible relative humidity: 80 % Protection class according to DIN EN 60529: IP 21 Voltage: 220 - 240 / 100 - 120 V Frequency: 50/60 Hz Power input: 45 W
