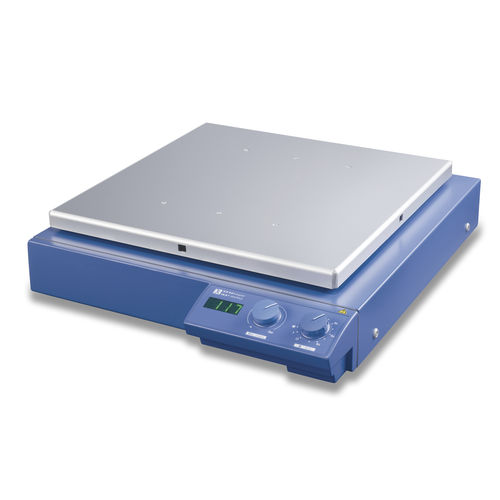

Orbital laboratory shaker KS 501 digital
digitalcompact

orbital laboratory shaker
orbital laboratory shaker
Add to favorites
Compare this product


Characteristics

Type
orbital
Display
digital
Configuration
compact
Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 300 rpm
(1,885 rad.min-1)

Description

Low profile laboratory shaker with large mounting surface and load capacity of up to 15 kg. • Infinitely variable speed control from 0-300 rpm • Digital display • Orbital diameter 30 mm • Ideal for all lying vessels, e.g. separating funnels • Continuous operation (endless) even under extreme loads • Timer function • Attachments are not included in delivery, please order separately • Integrated USB and RS 232 interface Technical Data Type of movement: reciprocating Shaker diameter: 30 mm Permissible shaking weight (incl. attachment): 15 kg Motor rating input: 70 W Motor rating output: 19 W Permissible ON time: 100 % Speed range: 0 - 300 rpm Speed display: 7 segment LED Timer: yes Timer display: scale Time setting range: 1 - 55 min Operating mode: timer and continuous operation Dimensions (W x H x D): 505 x 120 x 585 mm Weight: 26 kg Permissible ambient temperature: 5 - 50 °C Permissible relative humidity: 80 % Protection class according to DIN EN 60529: IP 21 RS 232 interface: yes USB interface: yes Voltage: 230 / 115 / 100 V Frequency: 50/60 Hz Power input: 74 W
