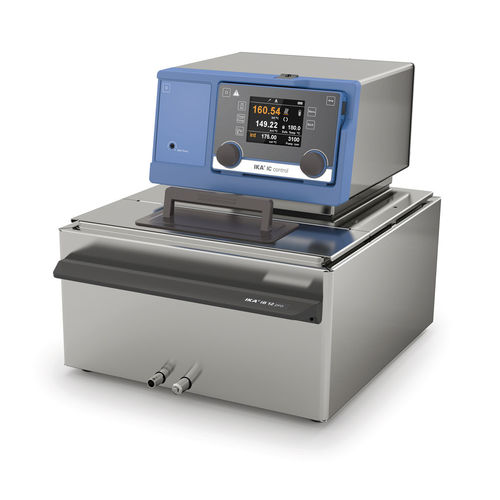

Thermostatic water bath IC control pro 12 c

coolingbenchtopimmersion

IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages including all required accessories. Package includes • IC control immersion circulator • IB 12 pro stainless steel bath (size M) • PT 100.30 temperature sensor • CC1 cooling coil (already included in IC control device) • CM.IC medium cover • BS.IC small bridge bath opening: 255 x 80 mm * max. bath opening: 292 x 105 mm ** Immersion depth. 95 mm–135 mm *Dimensions to set plate at the bottom of bath. ** Maximum bath opening dimensions at the upper edge of the bath Max. temperature in the stainless steel bath (“pro” series): 200 °C Technical data relates to the temperature control instrument included in the package Technical Data Appliance type : Immersion thermostat Class designation acc. DIN 12876 : III Identification according to DIN 12876 : FL Temperature display : yes Temperature control : PT 100 Working temperature sensor : PT 100 Safety temperature sensor : PT1000 Working temperature display : TFT Safety temperature display : TFT Temperature stability DIN 12876 : 0.01 ±K Connection for ext. temperature sensor : PT 100 Display resolution : 0.01 K Display for operation with ext. sensor : yes Set temperature resolution : 0.1 ±K Warning function optical : yes Warning function acoustic : yes Warning function excess temperature : yes Adjustable safety circuit : 0 - 260 °C Sub-level protection : yes Over-level protection : yes Pump type : Pressure- / suction pump Pump capacity adjustable : yes
