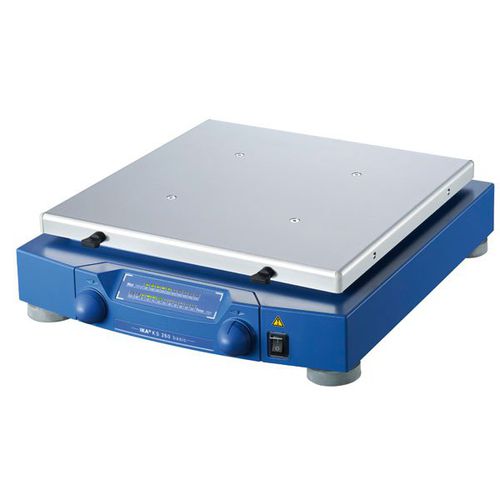

KS 260 basic | control | NOL
Compact, flat orbital shaker with ideal swivel motion, for a maximum shaking weight of 7.5 kg.
• Electronic adjustment of speed and timer
• LED display (basic) and digital display (control)
• Wide range of attachment combinations makes it possible to use almost all shapes and sizes of vessels
• Attachments are not included, please order separately
Additional for control version:
• Electronic time switching clock: 0 - 9 h 59 min or continuous operation (endless)
• With integrated end point positioning (for automated robot-controlled sampling)
• All functions can be controlled and documented with labworldsoft®
• Special version with reverse rotating direction on request
Additional for NOL version:
• Electronic time switching clock: 0 - 9 h 59 min or continuous operation (endless)
• All functions can be controlled and documented with labworldsoft®
• Special version with reverse rotating direction on request
Technical Data
Type of movement: orbital
Shaker diameter: 10 mm
Permissible shaking weight (incl. attachment): 7.5 kg
Motor rating input: 45 W
Motor rating output: 10 W
Permissible ON time: 100 %
Speed min (adjustable): 50 rpm | 10 rpm
Speed range: 0 - 500 rpm
Speed display: LED line | LCD
Timer: yes
Timer display: LED line | LCD
Time setting range: 5 - 50 min | 1 - 599 min
Operating mode: timer and continuous operation
Dimensions (W x H x D): 360 x 98 x 420 mm
Weight: 8.5 kg | 8.8 kg
Permissible ambient temperature: 5 - 50 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
Analog output: yes
Voltage: 220 - 240 / 100 - 120 V
Frequency: 50/60 Hz
Power input: 45 W
