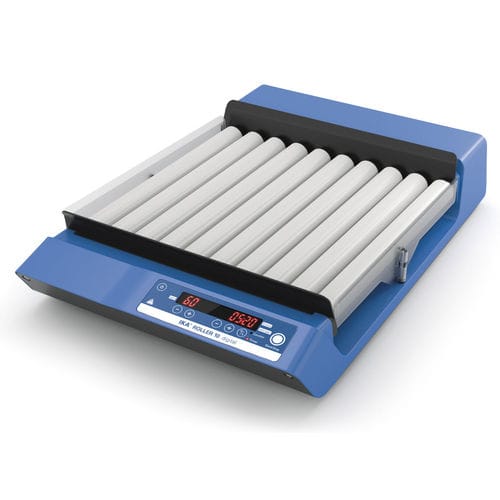

Digital roller shaker with 10 rolls provides smooth rocking and rolling action at infinitely adjustable speeds. Used for mixing blood samples, solid and liquid suspensions and viscous samples. The unit can be used with all conventional tubes and cylindrical bottles. Easily removable attachments provide for quick cleaning in case of sample spills.
• Usable at 4 to 50 °C in incubators
• Suitable for continuous operation
• Removable rolls enable shaking of larger tubes
• Easy operation with keypad
• Shaking diameter: 24,5 mm (height)
Additional for digital version:
• Timer: Countdown, adjustable from 1 s to 99h 59min
• Counter: Display of shaking time
• Error Code Display
Technical Data
Type of movement: rolling
Permissible ON time: 100 %
Speed min (adjustable): 5 rpm
Speed display: 7 segment LED
Speed control: 1 RPM steps
Timer: yes
Timer display: 7 segment LED
Operating mode: timer and continuous operation
Rolls, number: 10
Rolls, Ø: 32 mm
Rolls, length: 327 mm
Working area length: 350 mm
Rolls, luffing angle fixed: 3 °
Rolls, max stroke at roll end: 16 mm
Rolls, changeable, removable: yes
Dimensions (W x H x D): 380 x 115 x 545 mm
Weight: 6 kg
Permissible ambient temperature: 4 - 50 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 24 W
DC Voltage: 24 V=
Current consumption: 1000 mA
