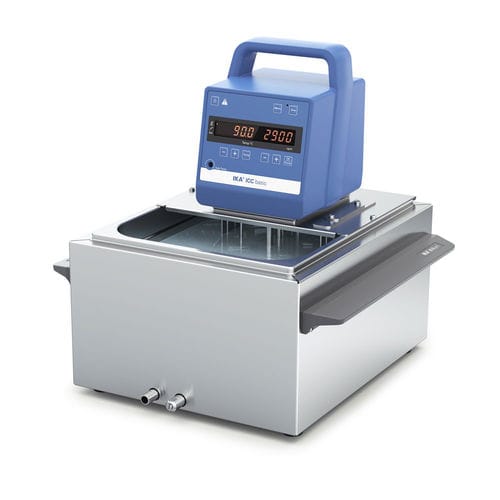

Thermostatic water bath ICC basic pro 9

coolingcompactbenchtop

IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories. Package includes • ICC basic compact immersion circulator • IB 9 pro stainless steel bath (size S) • BS.ICC small bridge ICC basic pro 9 c additionally includes: • CS.ICC Small cover • PCS.ICC Pump connection set • CC2 Cooling coil bath opening: 195x 100 mm* max. bath opening: 230 x 121 mm** Immersion depth. 85 mm–125 mm *Dimensions to set plate at the bottom of bath. ** Maximum bath opening dimensions at the upper edge of the bath Max. temperature in the stainless steel bath (pro series): 150 °C Technical data relates to the temperature control instrument included in the package Appliance type : Compact immersion circulators Class designation acc. DIN 12876 : III Identification according to DIN 12876 : FL Heat output : 2000 W Temperature control : PT 100 Working temperature sensor : PT 100 Safety temperature sensor : PT1000 Working/safety temperature display : LED Temperature stability DIN 12876 : 0.02 ±K Display resolution : 0.1 K Display for operation with ext. sensor : yes Set temperature resolution : 0.1 ±K Warning function optical/acoustic : yes Warning function excess temperature : yes Adjustable safety circuit : 0 - 160 °C Sub-level protection : yes Over-level protection : yes Pump type : Pressure- / suction pump Pump capacity adjustable : yes Pump pressure max. (0 liters discharge flow) : 0.3 bar Pressure pump (suction side) (0 liter flow) : 0.2 bar
