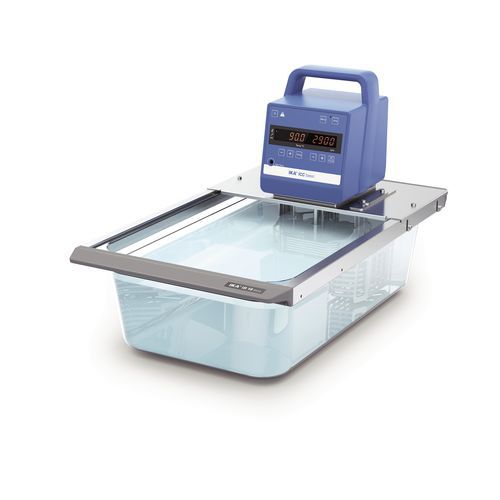

Thermostatic water bath ICC basic eco 18 c

coolingbenchtopcompact

IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories. Package includes: • ICC basic Compact Immersion Circulator • IB 18 eco Plastic bath (size L) • BL.ICC Large bridge ICC basic eco 18 c additionally includes: • CL.ICC large cover • PCS.ICC pump connection set • CC2 cooling coil bath opening: 245 x 305 mm * max. bath opening: 286 x 325 mm ** Immersion depth. 85 mm–125 mm *Dimensions to set plate at the bottom of bath. ** Maximum bath opening dimensions at the upper edge of the bath Max. temperature in the plastic bath (eco series): 100°C (water only) Technical data relates to the temperature control instrument included in the package Technical Data Appliance type : Compact immersion circulators Class designation acc. DIN 12876 : III Identification according to DIN 12876 : FL Heat output : 2000 W Temperature control : PT 100 Working temperature sensor : PT 100 Safety temperature sensor : PT1000 Working/safety temperature display : LED Temperature stability DIN 12876 : 0.02 ±K Display resolution : 0.1 K Display for operation with ext. sensor : yes Set temperature resolution : 0.1 ±K Warning function optical/acoustic : yes Warning function excess temperature : yes Adjustable safety circuit : 0 - 160 °C Sub-level/over-level protection : yes Pump type : Pressure- / suction pump Pump capacity adjustable : yes Pump pressure max. (0 liters discharge flow) : 0.3 bar Pressure pump (suction side) (0 liter flow) : 0.2 bar
