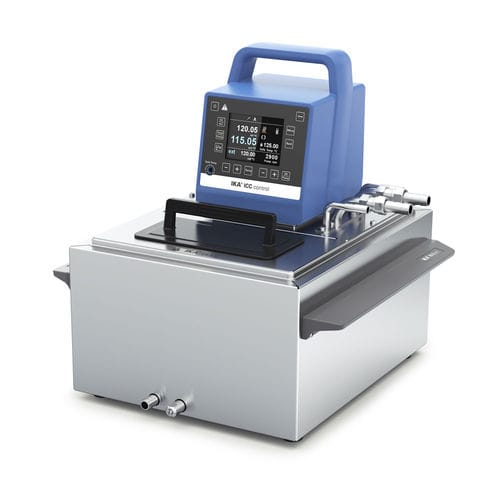

Thermostatic water bath ICC control pro 9 c

coolingbenchtopcompact

IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories. Package includes: • ICC control compact immersion circulator • IB 9 pro stainless steel bath (size S) • BS.ICC small bridge ICC control pro 9 c additionally includes: • CS.ICC small cover • PCS.ICC pump connection set • CC2 cooling coil • PT 100.30 temperature sensor Bath opening: 195x 100 mm* Max. bath opening: 230 x 121 mm** Immersion depth. 85 mm–125 mm *Dimensions to set plate at the bottom of bath. **Maximum bath opening dimensions at the upper edge of the bath Max. temperature in the stainless steel bath (pro series): 150 °C Technical data relates to the temperature control instrument included in the package Appliance type : Compact immersion circulators Class designation acc. DIN 12876: III Identification according to DIN 12876: FL Temperature control: PT 100 Working temperature sensor: PT 100 Safety temperature sensor: PT1000 Working/Safety temperature display: TFT Temperature stability DIN 12876: 0.01 ±K Connection for ext. temperature sensor: PT 100 Display resolution : 0.1 K Display for operation with ext. sensor : yes Set temperature resolution : 0.1 ±K Warning function optical/acoustic : yes Warning function excess temperature : yes Adjustable safety circuit : 0 - 160 °C Sub-level/Over-level protection: yes Pump type : Pressure- / suction pump Pump capacity adjustable: yes Pump pressure max. (0 liters discharge flow): 0.3 bar
