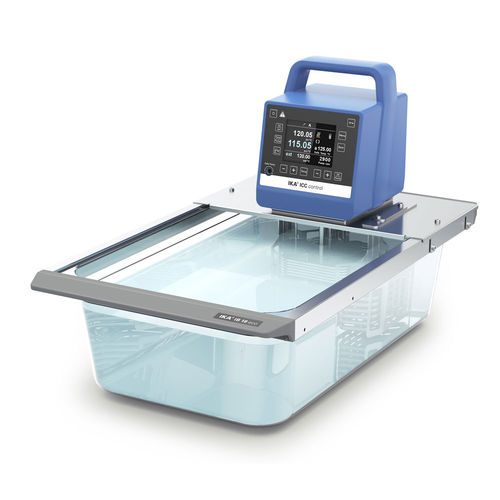

Thermostatic water bath ICC control eco 18

compactbenchtopimmersion

IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories. Package includes: • ICC control compact immersion circulator • IB 18 eco plastic bath (size L) • BL.ICC large bridge ICC control eco 18 c additionally includes: • CL.ICC large cover • PCS.ICC pump connection set • CC2 cooling coil • PT 100.30 temperature sensor bath opening: 245 x 305 mm* max. bath opening: 286 x 325 mm** Immersion depth. 85 mm–125 mm *Dimensions to set plate at the bottom of bath. **Maximum bath opening dimensions at the upper edge of the bath Max. temperature in the plastic bath (“eco” series): 100°C (water only) Technical data relates to the temperature control instrument included in the package Appliance type : Compact immersion circulators Class designation acc. DIN 12876 : III Identification according to DIN 12876 : FL Temperature control: PT 100 Working temperature sensor: PT 100 Safety temperature sensor: PT1000 Working/safety temperature display: TFT Temperature stability DIN 12876 : 0.01 ±K Connection for ext. temperature sensor: PT 100 Display resolution: 0.1 K Display for operation with ext. sensor: yes Set temperature resolution: 0.1 ±K Warning function optical/acoustic: yes Warning function excess temperature: yes Adjustable safety circuit: 0 - 160 °C Sub-level/Over-level protection: yes Pump type : Pressure- / suction pump Pump capacity adjustable : yes Pump pressure max. (0 liters discharge flow) : 0.3 bar
