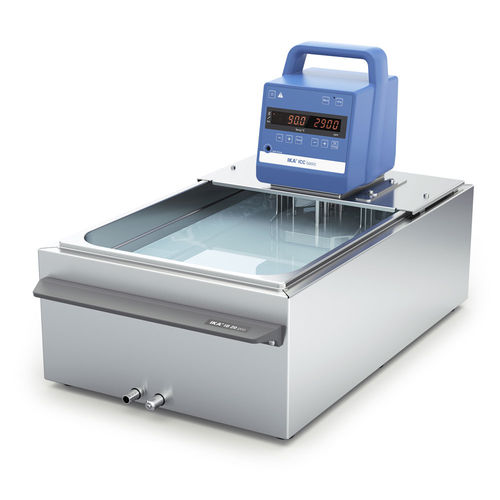

Thermostatic water bath ICC basic pro 20

benchtopimmersioncompact

IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories. Package includes • ICC basic Compact Immersion Circulator • IB 20 pro Stainless steel bath (size L) • BL.ICC Large bridge ICC basic pro 20 c additionally includes: • CL.ICC large cover • PCS.ICC pump connection set • CC2 cooling coil bath opening: 255 x 309 mm* max. bath opening: 292 x 325 mm** Immersion depth. 85 mm–125 mm *Dimensions to set plate at the bottom of bath. ** Maximum bath opening dimensions at the upper edge of the bath Max. temperature in the stainless steel bath (“pro” series): 150 °C Technical data relates to the temperature control instrument included in the package Appliance type : Compact immersion circulators Class designation acc. DIN 12876 : III Identification according to DIN 12876 : FL Temperature control : PT 100 Working temperature sensor : PT 100 Safety temperature sensor : PT1000 Working/safety temperature display : LED Temperature stability DIN 12876 : 0.02 ±K Display resolution : 0.1 K Display for operation with ext. sensor : yes Set temperature resolution : 0.1 ±K Warning function optical/acoustic : yes Warning function excess temperature : yes Adjustable safety circuit : 0 - 160 °C Sub-level/Over-level protection : yes Pump type : Pressure- / suction pump Pump capacity adjustable : yes Pump pressure max. (0 liters discharge flow) : 0.3 bar Pressure pump (suction side) (0 liter flow) : 0.2 bar
