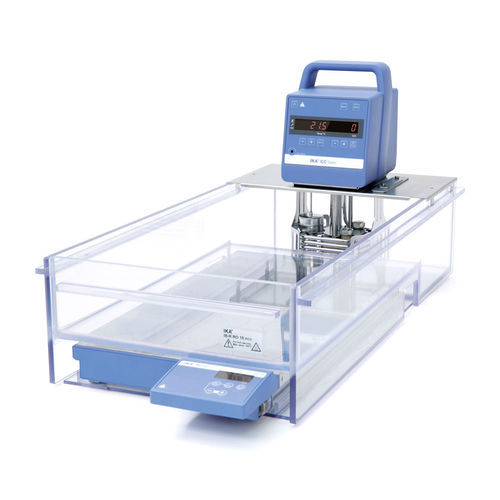

Circulating water bath ICC control IB R RO 15 eco

coolingstirringcompact

IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories. Circulating bath with 15 stirring positions for glass beakers up to 250 ml. Package includes • ICC basic | control immersion circulator • IB R RO 15 eco plastic bath (size L) • RO 15 magnetic stirrer • BL.ICC large bridge Bath opening: 317 x 492 mm Maximum Temperature 100°C Immersion Depth: 35-75 mm Max. temperature in the plastic bath (“eco” series): 100°C (water only) *Technical data relates to the temperature control instrument included in the package Appliance type : Compact immersion circulators Class designation acc. DIN 12876 : III Identification according to DIN 12876 : FL Temperature control : PT 100 Working temperature sensor : PT 100 Safety temperature sensor : PT1000 Working temperature display : LED Safety temperature display : LED Temperature stability DIN 12876 : 0.02 ±K Display resolution : 0.1 K Display for operation with ext. sensor : yes Set temperature resolution : 0.1 ±K Warning function optical : yes Warning function acoustic : yes Warning function excess temperature : yes Adjustable safety circuit : 0 - 160 °C Sub-level protection : yes Over-level protection : yes Pump type : Pressure- / suction pump Pump capacity adjustable : yes Pump pressure max. (0 liters discharge flow) : 0.3 bar Pressure pump (suction side) (0 liter flow) : 0.2 bar Flow rate max. (0 bar back pressure) : 18 l/min Bath depth min. : 150 mm
