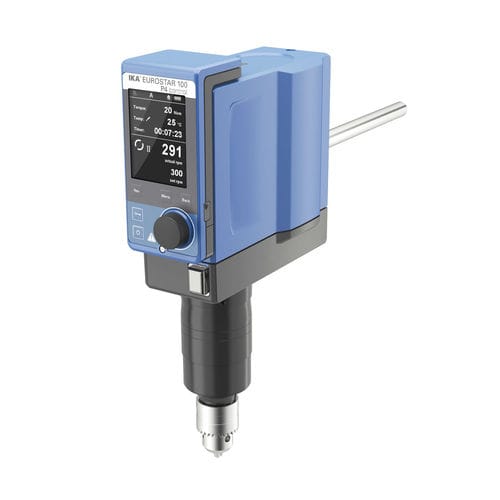

Rotary laboratory stirrer EUROSTAR 100 P4 control

overheaddigitalbenchtop

The extremely powerful laboratory stirrer EUROSTAR 100 control P4 with a removable wireless controller and a digital TFT display is especially suitable for highly viscous applications and provides a torque of up to 320 Ncm. The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. Furthermore, an integrated torque trend display is provided for the measurement of viscosity changes and its electronic safety circuit ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample. • Reverse function • Multilingual TFT display • Programmable functions • Integrated temperature measurement • Interval operation • Timer function • Adjustable safety circuit • Locked function • Infinitely adjustable speed • Push-through agitator shafts • Overload protection • Short-term overload operation • Quiet operation • Error code Display • H 67.60 temperature sensor and WH 11 WiCo holder included in delivery Technical Data Stirring quantity max. per stirring position (H2O): 100 l Motor rating input: 174 W Motor rating output: 142 W Motor principle: Brushless DC Speed display: TFT Reversible direction of rotation: yes Intermittent operation: yes Viscosity max.: 100000 mPas Output max. at stirring shaft: 100 W Permissible ON time: 100 % Torque max. at stirring shaft: 320 Ncm Speed control: stepless
