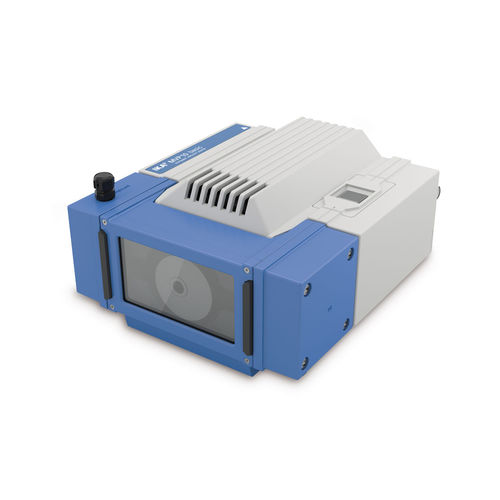

Laboratory vacuum pump MVP 10 basic

diaphragmoil-free

For dry, oil-free applications Slimline, compact design and long service life Straightforward servicing and simple maintenance Diaphragm pump that is highly resistant to chemicals as all parts that come into contact with gas are made of PTFE or PTFE compounds Technical Data Pump rate max. (50/60Hz)1.7 m³/h Pump rate max. (50/60Hz)28.3 l/min Final pressure without gas ballast7 mbar Final pressure with gas ballast15 mbar Suction levels2 Cylinder2 Connection diameter suction side10 mm Connection diameter pressure side10 mm Gas ballast valveyes Input pressure7 - 1050 mbar Speed range1380 - 1680 rpm Nominal speed1380 rpm Noise at low. pressure65 dB(A) Dimensions (W x H x D)245 x 155 x 320 mm Weight11.5 kg Permissible ambient temperature10 - 40 °C Permissible relative humidity80 % Protection class according to DIN EN 60529IP 54 Voltage230 / 115 / 100 V Frequency50/60 Hz Power input180 W
