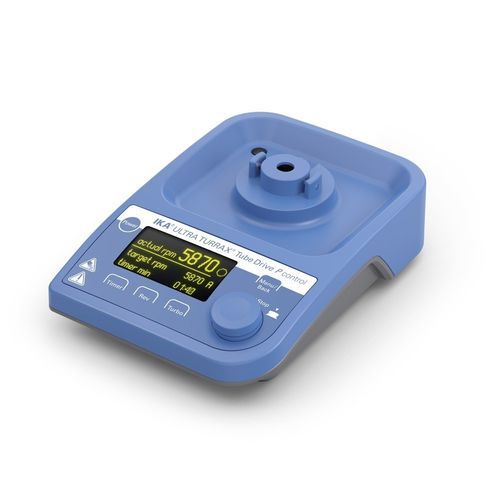

Laboratory disperser ULTRA-TURRAX®

for liquids

The IKA UTTD power control disperser gets its name from an even more powerful motor. The disperser assures the best stirring, dispersing, grinding and homogenisation results and has been devised in particular for the safe processing of infectious, toxic or odour-intensive samples. Disposable tubes The sealable disposable tubes have been optimised for your application. They reduce the amount of cleaning required and rule out any risk of cross-contamination. Programmable test conditions Time, energy, volume: You specify and systematically program the test conditions and store frequently used parameters in your library. Adjustable change in direction of rotation When, and how often, the direction of rotation should be changed is very easily set using the clear and multilingual menu. Turbo button Even more intensive mixing, dispersing or grinding at your fingertips: All of this is achieved with the turbo button. Over short periods, rotational speeds of up to 8,000 rpm can be achieved. Technical Data Motor rating input: 36 W Motor rating output: 28 W Viscosity max.: 5000 mPas Speed range: 400 - 8000 rpm Reversible direction of rotation: yes Speed deviation: 3 % Speed control: 10 RPM Steps Speed display: OLED Noise without element: 50 dB(A) Process type: batch Timer: yes Timer display: OLED Dimensions (W x H x D): 122 x 54 x 178 mm Weight: 1.3 kg Permissible ambient temperature: 5 - 40 °C Permissible relative humidity: 80 % Protection class according to DIN EN 60529: IP 20 USB interface: yes Voltage: 100 - 240 V Frequency: 50/60 Hz Power input: 36 W DC Voltage: 24 V= Current consumption: 1500 mA
