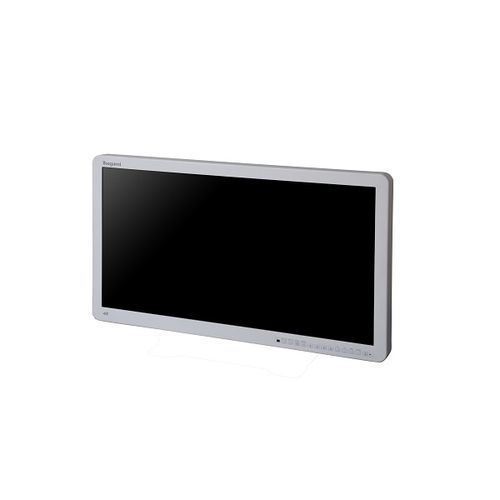

4K display MLW-3110U

HD31"LCD

The MLW-3110U is a 31-inch 4K monitor with 12G-SDI & HDMI2.0. Inaddition to its native 4K resolution, 1500:1 high contrast LCD panel represent much more vivid picture that would support doctors for better visibility. Front control buttons employ Touch panel which makes it easier to keep clean. MLW-3110U will set the new standard for high-end Medical video monitoring applications. 12G/3G-SDI / HDMI (HDCP2.2) / DVI-D (HDCP1.4) comes as standard input. 12G-SDI can extend more than 75m over single coaxial cable (5CFB or equivalent).  Native 4K LCD panel Newly developed 10-bit IPSUHD panel employs LED back light. It can display 3840 x 2160 native 4K resolutionwith Contrast ratio 1500 : 1.  High performance display engine Super resolution can upscale HD image to fit to the screen size. Besides H.I.S.E & D.I.C.E., a unique technology can adjust the view to enhance structure and color of the blood vessels and tissues.  Front touch panel Flat surface control buttons provide ease of cleaning as well as operation comfort.  New VESA Tilt-stand (Option) Newly designed VESA stand can set the monitor at the best viewing angle thanks to its wide adjustable range. Specifications RGB/Component Input Signal and Connector - R,G,B or Y,Pb,Pr, 1CH:HD-15 [D-Sub 15pin] (with loop through) DVI Input Signal and Connector - DVI-D (HDCP1.4) SDI Input Signal and Connector - 2CH x 12G(3G/HD-SDI), 3CH x 3G(HD-SDI) HDMI Input Signal and Connector - HDMI2.0 (HDCP2.2) Other Input Signal and Connector - RS-232C Serial, RJ-45 Ethernet, USB General Safety Approval - ANSI/AAMI ES60601-1, CSA C22.2 No.60601-1,EN60601-1 EMC - FCC Class A, VCCI Class A, EN60601-1-2
