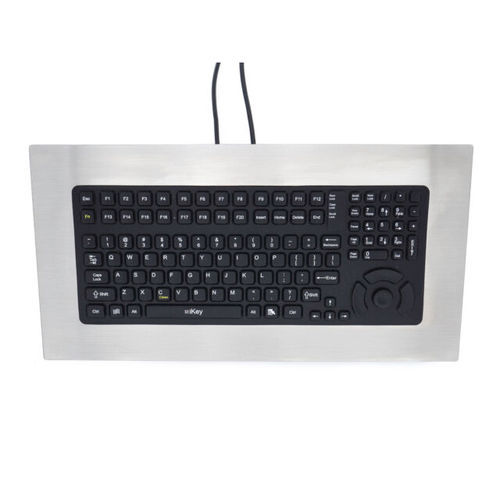

Medical keyboard with numeric keypad PM-5K-FSR-NI

silicone rubberstainless steelUSB

iKey® offers a full line of nonincendive keyboards and pointing devices. The PM-5K-FSR-NI is Non Incendive and features an integrated Force Sensing Resistor (FSR) pointing device, is enclosed in a stainless steel case and carries a Factory Mutual approval of Class I, Division II. These units are ideal for harsh working conditions. All units come with isolation barrier. PM-5K-FSR-NI is an Intrinsically Safe Peripheral IS/NI Features: 10-Key Numeric Pad Integrated Force Sensing Resistor Pointing Device, with improved design and sensitivity PS/2 or USB configurations available. PS/2 ships with bulkhead cable. USB ships with PG7 cable gland. CERTIFICATIONS - NEMA 4X UL60950, FCC Part 15 Class B, Factory Mutual: Class I Div 2 Groups A, B, C, D Class II Div 2 Groups F & G Class III Div 2 SHOCK - 3x11 ms pulses of 50g on each of 3 axes CABLE - LENGTH: 5 feet from keyboard to Bulkhead Connector DESIGN: 2 separate cables on PS/2 or single-cable USB KEY SWITCH - MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap VIBRATION - POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours POWER - KEYBOARD: 5V@10ma (from CPU port) MOUSE: 5V@20ma (from CPU port) COMPATABILITY - PS2 KEYBOARD/FSR: All Windows Operating Systems USB KEYBOARD/FSR: All Windows and Macintosh Operating Systems
