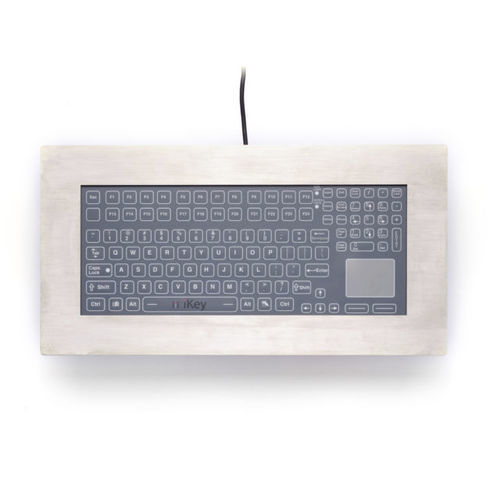

Medical keyboard with touchpad PM-5K-MEM-TP

stainless steelUSBsealed

The PM-5K-MEM-TP is the panel mount model in iKey®’s membrane keyboard product line, built to withstand the harshest environments. It is manufactured with a hardcoated, textured polyester film and trampoline-mounted, snap-dome switches that provide a superior feel and actuation over a standard membrane keyboard. The integrated Synaptics® touchpad is completely sealed under an extra layer of PVC membrane, which extends the life of the product. It lacks the crevices found between the keys of regular keyboards. It is designed to meet NEMA 4X specifications, withstanding directed hose water, disinfectants, environmental contaminants and heavy industrial use. This keyboard also has medical setting applications. Features: 10-Key Numeric Pad 24 Function Keys Hardcoated Textured Polyester Film Integrated Touchpad Stainless Steel Case CERTIFICATIONS - NEMA 4X UL60950;FCC Part 15 Class B; CE SHOCK - 3 x 11 ms pulses of 50g on each of 3 axes CABLE - LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2 Cable (providing separate keyboard and mouse connections), or Single-Cable USB KEY SWITCH - MATERIAL: Hardcoated Textured Polyester Film LIFE: Greater Than 1 Million Cycles TRAVEL: 0.020 in. (0.51mm) ACTUATION FORCE: 9.88 oz +/- 1.06 oz (280g +/- 30g) FEEDBACK: Tactile with Mechanical Snap VIBRATION - POWER SPECTRAL DENSITY: .04g/HZ FREQUENCY RANGE: 20Hz-2Khz DURATION OF TEST PER AXIS: 3 hours POWER - PS/2: KEYBOARD: 50mA@5V (Keyboard port) TOUCHPAD: 10mA@5V (Mouse port) USB: 60mA@5V (CPU port)
