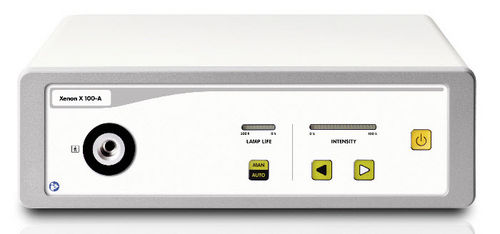

Endoscope light source basic seriesxenon
Add to favorites
Compare this product
Characteristics
- Applications
- for endoscopes
- Light source
- xenon
Description
· Low noise, low heat conduction
· Electronical light control via buttons
· Simple lamp replacement
· Waterproof touch control panel
Technical Data
Lamp
· Xenon arc lamp: 100 W/ 180 W/ 300 W
· Daylight quality, 5600 K
· Lifetime: 500 hr (expected)
Light guide connection
· Storz, Wolf, Olympus, turret adapter
System
· Power supply: 100-240 V AC, 50-60 Hz
· Fuses: 2 Fine fuses, 5x20 mm, delay 6,3 AT (l=1500A)
· Power consumption: 170 VA/ 250 VA/ 400 VA
Video In (opt.)
· 1x Video (BNC) (automatic Version only)
Standard
· Protection class: I
· Application part: Type BF
· classification acc. 93/42/EEC: I
· EN ISO 13485 | 93/42/EEC | IEC 601-1, EN 60601-1C
Dimensions
· (WxHxD): 355 x 120 x 340 mm
· Weight: 8,0 kg (100W) / 8,0 kg (180W) / 12,5 kg (300W)
Delivery contains
· Light source, mains cable, user manual, BNC cable (optional)
Options
· Automatic light intensity control
· Lamp life & intensity with 7-segment display
