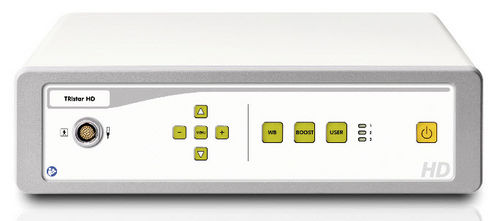

Endoscope camera TRIstar HD

full HDHDultra-high resolution

· Full HD resolution · High speed shutter · Multilingual menu · Remote camera head Technical Data Camera head: · Aspect ratio: 16:9 · Image sensor: 3 MOS · Immersible (using the attached cap) System · Power supply: 100/240 VAC, 50-60 Hz · Fuses: 2 Fine fuses, 5x20 mm, delay acting 3,15 AH (l=1500A) · Power consumption: 20 VA · Image resolution: full HD 1920 x 1080 · TV resolution: > 1000 lines · Sensivity: < 3 lux (1/1.4) · White balance automatically, with data hold shutter speed: 1/50 (1/60) to 1/100.000 sec Video out terminal · 2x HD SDI · 1x HDMI / DVI · 1x Y-Pb-Pr (Component) · 1x Y/C (PAL / NTSC) · 1x CVBS (PAL / NTSC) · LAN (optional) Standard · Protection class: I · Application part: Type BF · IEC 601-1, EN 60601-1C; classification acc. 93/42/EEC: I Features · White balance, boost function · On-screen-menu · 3 user settings storable · 2.5 digital zoom · Freeze function · Character generator Dimensions · Control unit: 355 x 103 x 253 mm (WxHxD); 4,5 kg Delivery contains · CCU, camera head with 4m cable, mains cable, Y/C cable, BNC cable, HDMI - DVI cable, HDMI cable, RGB cable, User manual
