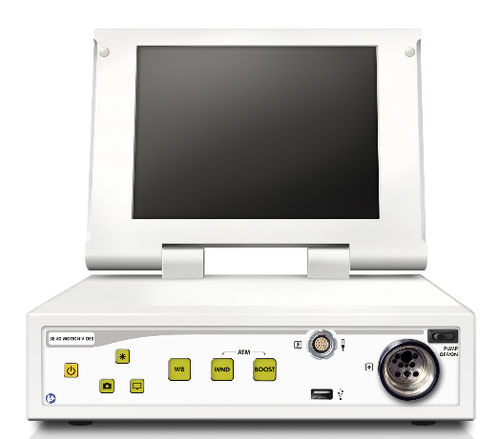

Endoscopy video processor XE-50 Motion V OESveterinary endoscopy
Add to favorites
Compare this product
Characteristics
- Applications
- endoscopy, veterinary endoscopy
Description
· Veterinary use
· Multifunctional system
· Camera, Lightsource & pump
· Documentation system
Technical Data
Camera head:
·
Aspect ratio: 4:3
·
Image sensor: 1/3’’ CCD
·
Immersible (using the attached cap)
System
·
Power supply: 100/240 VAC, 50-60 Hz
·
Fuses: 2 Fine fuses, 5x20 mm, delay acting 3,5 AH (l=1500A)
·
Power consumption: 15 VA
·
Video resolution: 470 lines
·
Sensivity: < 1 lux (1/1.4)
Video system
·
PAL /NTSC
Monitor
·
10,4" TFT, 800 x 600 dots resolution
Shutter range
·
PAL 1/50 - 1/100.000 sec; NTSC 1/60 - 1/100.000 sec
Lamp
·
Xenon metal halide short arc Lamp, 50 W, 5500 K
Light guide connection
·
Olympus OES
Video out terminal
·
2x Video; 2x S-Video; 1x Y-Pb-Pr (Component); 1x SDI; 1x USB 2.0
Standard
·
Protection class: I
·
Application part: Type BF
·
IEC 601-1, EN 60601-1
Features
·
White balance, window functions, boost function, anti-moiree-filter
·
Freeze function
·
Image capture
Dimensions
·
Control unit: 295 x 128 x 278 mm (WxHxD); 6 kg
Delivery contains
·
CCU, mains cable, user manual, , Y/C cable, BNC cable, USB Stick (optional)
Catalogs
XE-50 Motion V OES
2 Pages
