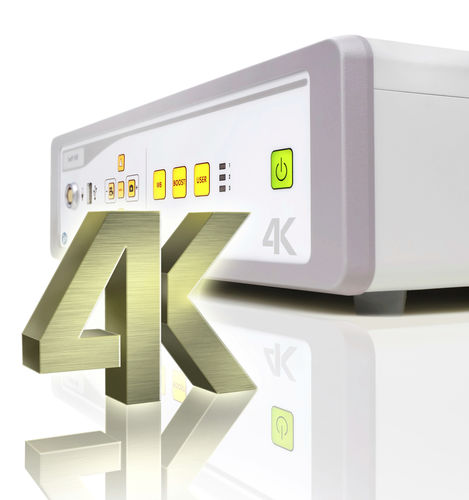

Endoscope camera TRIstar HD

4K

4K UHD resolution High speed shutter Multilingual menu Remote camera head Technical Data Camera head: · Aspect ratio: 16:9 · Image sensor: 3 MOS · Immersible (using the attached cap) System · Power supply: 100/240 VAC, 50-60 Hz · Fuses: 2 Fine fuses, 5x20 mm, delay acting 3,15 AH (l=1500A) · Power consumption: 20 VA · Image resolution: UHD 3840 x 2160 · TV resolution: 1600 lines · Sensitivity: < 3 lux (1/1.4) · S/N-Ratio 54dB · White balance automatically, with data hold Video out terminal · 1 x HDMI (3840 × 2160) · 1 x HDMI (1920 x 1080) · 1 x 3G/HD-SDI x 4CH (3840 x 2160) · 1 x HD-SDI x 1 CH (1920 x 2160) Standard · Protection class: I · Application part: Type BF · classification acc. 93/42/EEC: I · EN ISO 13485 | 93/42/EEC | IEC 601-1, EN 60601-1C Dimensions · Control unit: 355 x 103 x 253 mm (WxHxD); 4,5 kg Delivery contains · CCU, camera head with 4m cable, mains cable, HDMI cable, User manual
