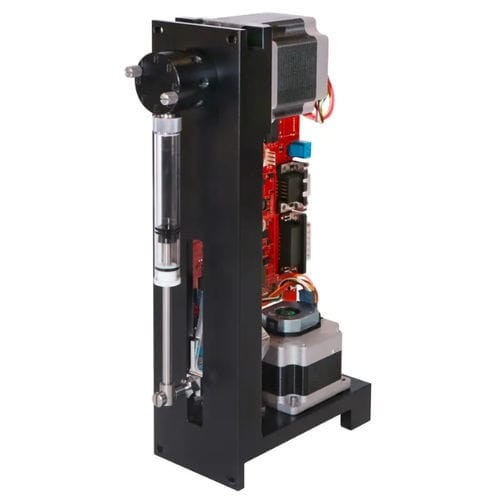

1-channel syringe pump Cadent™ 6

programmable

– Programmable, maintenance free, precision liquid metering device – 60mm stroke driven via stepper motor and precision ball screw – Available in three mechanical resolutions: 12K, 24K, 48K – Powerful lift force and valve torque – Exceptional precision, accuracy and lifetime performance Environmental Operating Temperature: 2ºC to 50ºC (36ºF to 122ºF) Operating Humidity: <80% Relative Humidity at 5°C to 30°C and <50% at 31°C to 50°C Storage Temperature: -33°C to 71°C (-27°F to 160°F) Noise: 5.7 Million cycles [1 cycle = 1 full dispense and aspirate move] Mechanical Operation: Any orientation Mounting Holes: Bottom and Front Resolutions: 12K, 24K and 48K steps Performance Speed: 0.0625 - 10,000 steps/sec Precision: 0.50% CV at 1/10th dispense 0.05% CV at full stroke dispense Accuracy: ±0.3% at 1/10th dispense ±0.2% at full stroke dispense Flow Rate: Min: 46.9nL/hr (with 10μL syringe) Max: 2.5mL/min (with 50mL syringe) Full Dispense Time: Min: 1.2 secs (with 12K resolution) Max: 12,800 min (with 48K resolution) Flow Accuracy: ±1% Plunger Lift Force: 120lbs force, 12K res. 140lbs force, 24 and 48K res. Electrical Connection: 6 inputs - 2 Analog/Digital, 4 Digital 4 digital outputs Tamper pin Communication Options: RS-232, RS485, CANbus Power Requirements: 24VDC (± 5% allowance) (with a maximum power ripple of 720mv peak to peak). Power Consumption: 14 watts max; 3.5 watts idle. Rotary Valve Options: up to 12-way
