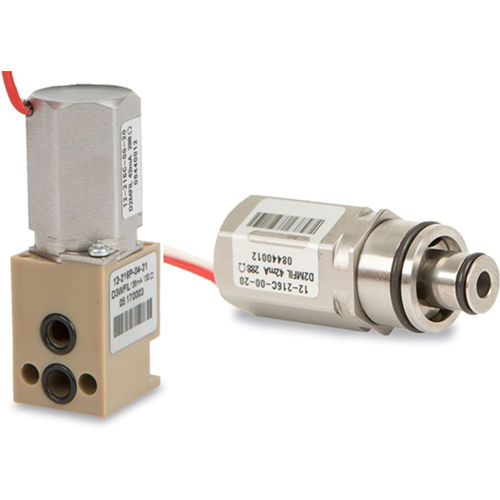

Medical valve FLATPROP DA

proportionalstainless steel

– 2/2 NC proportional valve – High precision miniature proportional valve – Flat plunger and spring for frictionless operation – Highly repeatable with over 100 million cycles – Accurate control of flows ranging from a few ml/min to 80 l/min Medium: Air, oxygen or neutral gases Orifices: Orifice sizes 0,8 to 2,0 mm (0,03’’ to 0,078’’) Filtration: A filtration of 10 micrometer is required before the inlet for valves with an orifice size comprised between 0,8 to 2,0 mm Operation: Direct acting 2-way valve Normally closed Hysteresis: Typical: <10% of full scale current Cleanliness: Oxygen compatible Operating pressure: 0 … 12 bar (0 … 174 psi) Mounting: Cartridge Size: 16 mm Life expectancy: ≥ 100 Mio. cycles Internal & external leakage: < 10-2 mbar l/s (≈0.6 ml/min) at pmax Protection class (acc. to EN60529): IP51 Weight: < 50 g (0,11 lbs) Ambient/media temperature: +10 … +50°C (+50 … +122°F) Materials: Body: Stainless steel only or stainless steel/brass PEEK (only when mounted on sub-based) Seal: FPM, NBR, EPDM
