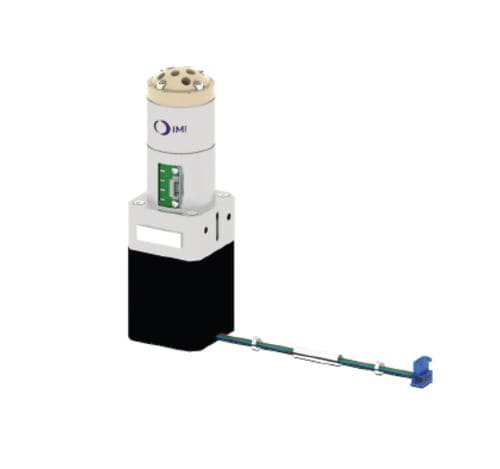

Medical valve VD08021PKPKPK0050

rotary

– Rated to 34 bar (500 psi) – Dynamically alternating between two fluid paths without manually disconnecting plumbing – High-precision position sensing by absolute encoder – Stepper motor with planetary gearing system – Saving space and reducing complexity – High-performance and cost-effective – Proven and robust design Type: 8 port, 2 position switching valve Pressure rating: 34 bar (500 psi) Port threads: 10-32 UNF-2B Fitting type: Cone Power requirements: 1.26A 24V Gearbox ratio: 3.66:1 Motor specification: 2 phase, 1.8° step angle Connector: Molex 0151340606 Communication Protocol: RS-485 Dimensions: Height: 141.7 mm (5.58 in) Width: 42.1 mm (1.66 in) Depth: 42.1 mm (1.66 in) Flow passage diameters: 0.3 mm (0.01 in) Port to port volume: 0.7 μL Stator port volume: 0.1 μL Seal volume: 0.2 μL Rotor channel volume: 0.1 μL Weight: 0.35 kg (0.78 lbs) Operating temperature: +4 … +80°C (+39 … +176°F) Storage temperature: –30 … +80°C (–86 … +176°F) Storage humidity: < 95% humidity, non-condensing Switching time: < 0,25s Wetted materials: Stator: PEEK Rotor: PEEK Seal: PEEK Compliance: RoHS, REACH
