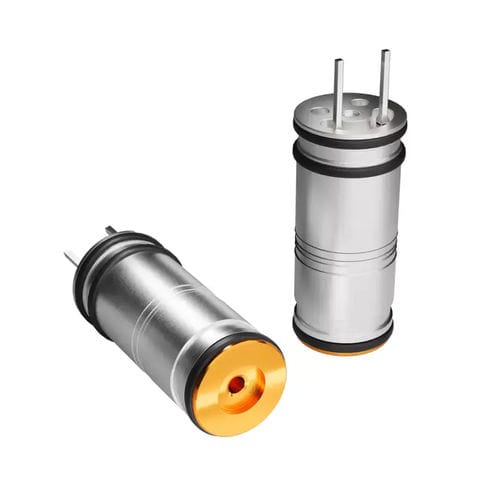

Medical valve CHIPSOL

solenoid

– 2/2, 3/2 NC/NO; Cartridge mounting – Very compact design (ø 8 x 19 mm) – Low power consumption (0,5 W) – Long life up to 100 million cycles – High flow to size ratio Medium: Air, oxygen, neutral gases (10% … 95% humidity, non condensing), 40 μm filtered Operation: Direct acting 2-way and 3-way valves Normally closed and normally opened Operating pressure: 0 … 8 bar (0 … 116 psi) Mounting: Cartridge Size: 8 mm Orifice: 0,5 … 1 mm Response time: 5 … 10 ms Response time measured according to ISO 12238 Life expectancy: ≥100 Mio. cycles Mounting instruction: The valve must be assembled in its housing with a lubricant that is compatible with the seals. Max axial force supported by the valve: 75 (N). Ambient/media temperature: –10 … +50°C (+14 … +122°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). Materials: Body: PPS Seat seals: HNBR Internal parts: Stainless steel
