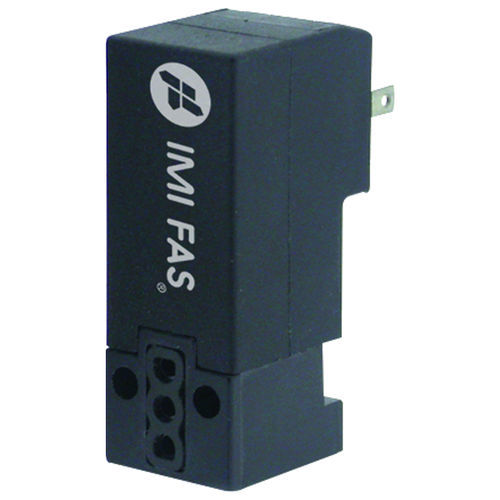

Medical valve MICROSOL IS

media separatedsolenoid

– 2/2, 3/2; Manifold mounting – Compact design – High flow rate – In excess of 100 – Mio. cycle rate – Up to 3,6 mm orifice Medium: Air, oxygen, neutral gases (10% to 95% humidity, non condensing), 40 μm filtered Operation: Direct acting 2-way and 3-way valves, normally closed and normally opened Flow: 6 … 120 l/min at 2 bar (29 psi) at +20°C (+68°F) kv factor: 0,15 … 3 (Cv: 0,01 … 0,2) Mounting: Manifold Orifice: 2/2 way valves: 0,5 … 3,6 mm (0,02 … 0,14”) 3/2 way valves: 0,5 … 1,5 mm (0,02 … 0,06”) Response time: 10 … 15 ms Response time measured according to ISO 12238 Life expectancy: ≥100 million cycles (except Hit & Hold valves) Weight: 30 g (0.07 lbs) Ambient/media temperature: -10 ... +50 °C (+14 ... +122°F) Air supply must be dry enough to avoid ice formation at temperatures below +2 °C (+35°F). Materials: Body: PPS, PA Seat seals: NBR, FPM Internal parts: Stainless steel, PAA
