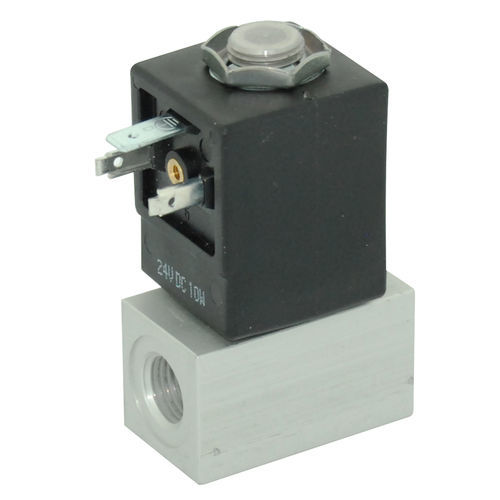

Medical valve BACOSOL

media separatedsolenoid

– 2/2, 3/2-ways valves – Manifold mounting – Compact design – High flow rate – High cycle rate of up to 1200 cycles per minute – Up to kv 14 (origine 8mm) Medium: Air, neutral gases and liquids Operation: Direct acting 2-way and 3-way valves, normally closed and normally opened, latching Operating pressure: 0 ... 100 bar (0 ... 1450 psi) Flow kv factor: 0,15 ... 14 (Cv: 0.01 ... 1) Mounting: G1/4 others on request Orifice: 2/2: 0,5 .... 8 mm (0.02 ... 0.31”) 3/2: 0,8 .... 3 mm (0.02 ... 0.12”) Port size: G1/4, G1/8, M5, CNOMO Response time: 10 ... 15 ms Response time measured according to ISO 12238 Ambient/media temperature: Ambient: -15 ... +50 °C (+5 ... +122°F) Media: -15 ... +140 °C (+5 ... +284°F) Air supply must be dry enough to avoid ice formation at temperatures below +2 °C (+35°F). Materials: Body in contact with media: Stainless steel, brass, PA Seal in contact with media: NBR, FPM, EDPM
