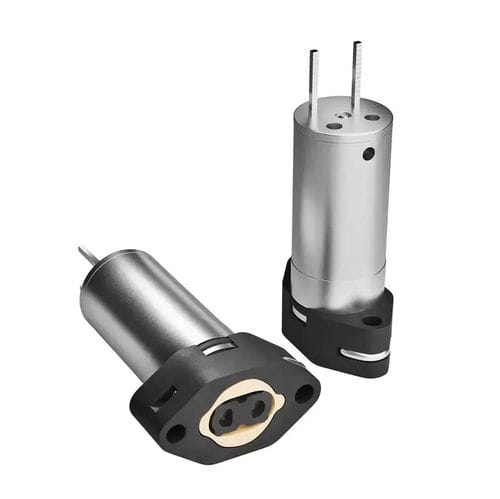

Medical valve CHIPSOL MS

solenoidproportionalmedia separated

– 2/2 NC Media-separated – Cartridge or manifold mounting – Low internal volume, virtually no unswept volume – Very compact design (ø 8 x 21 mm) – Low power consumption (0,5 W) – Long life up to 30 million cycles – 100% E.D. operation up to 50°C fluid temperature Medium: Neutral or aggressive gases and liquids Operation: Direct acting 2-way valves, normally closed Operating pressure: 0 … 2,1 bar (0 … 30 psi) at port 1 0 … 0,2 bar (0 … 2,9 psi) at port 2 0,5 bar (7,2 psi) maximum back pressure at port 2 Mounting: Cartridge or manifold Size: 8 mm Flow characteristics: Orifice size: 0,8 mm kv: 0,1 (Cv: 0,007) Response time: < 15 ms Response time measured according to ISO 12238 Life expectancy: ≥30 Mio. cycles Ambient/media temperature: –10 … +50°C (+14 … +122°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). Material: Body in contact with media: PEEK Seat seals: EPDM or FFPM
