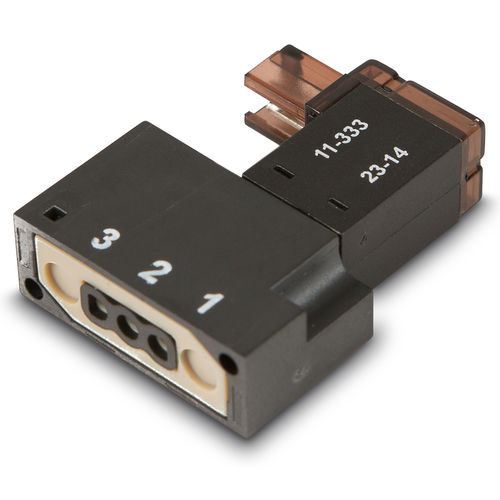

Medical valve PICOSOL MS

solenoidmedia separated

– 3/2 UNI Media separated – Manifold mounting – Excellent flow to size ratio – Low internal volume, excellent cleaning ability – Low energy consumption 3,5/0,4 W – Patented double rocker mechanism Medium: Neutral or aggressive gases and liquids Operating: Direct acting 3-way universal media separated valve Operating Pressure: –0,95 … 2,2 bar (–13,7 … 32 psi) Flow: kv: 0,65 l/min [16 l/min at Δp = 1 bar (14,5 psi Mounting: Manifold Orifice: 1,2 mm Life expectancy: ≥ 10 Mio. cycles Weight: 15 g (0,03 lbs) Ambient/media temperature: 10 … +50°C (+50 … +122°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). Materials: Body in contact with media: PEEK Seal and diaphragm material in contact with media: FFPM, EPDM
