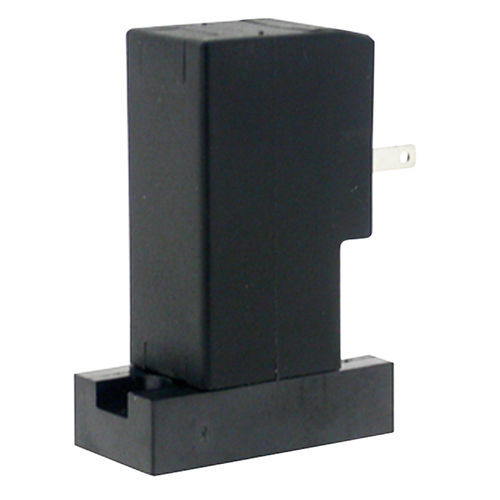

Medical valve MICROSOL MS

solenoidmedia separatedhigh-pressure

– 3/2 UNI Media-separated, – Manifold mounting – Low internal volume, virtually no unswept volume – Large pressure rang – Long life - in excess of 10 Mio. cycles – Very compact design – Low power consumption: 4/0,4 W Medium: Neutral or aggressive gases and liquids Operation: Direct acting 3-way media separated valves Operating pressure: Orifice 1.2 mm: -0.95…4.5 bar (-13.8…65.2 psi) Orifice 1.6 mm: -0.95…2.2.bar (-13.8…31.9 psi) Flow: kv: 0.6 l/min; flow: 24 l/min (orifice 1.2 mm, at Δp = 2 bar, 20°C (+68°F) ) kv: 0.8 l/min; flow: 33 l/min (orifice 1.6 mm, at Δp = 2 bar, 20°C (+68°F) ) Mounting: Manifold Orifice: 1,2 and 1,6 mm Life expectancy: ≥10 Mio. cycles Weight: 30 g (1.06 lbs) Ambient/media temperature: +5 ... +50 °C (+41 ... +122°F) Air supply must be dry enough to avoid ice formation at temperatures below +2 °C (+35°F). Materials: Body in contact with media: PEEK Seal and diaphragm material in contact with media: FPM, FFPM, EPDM
