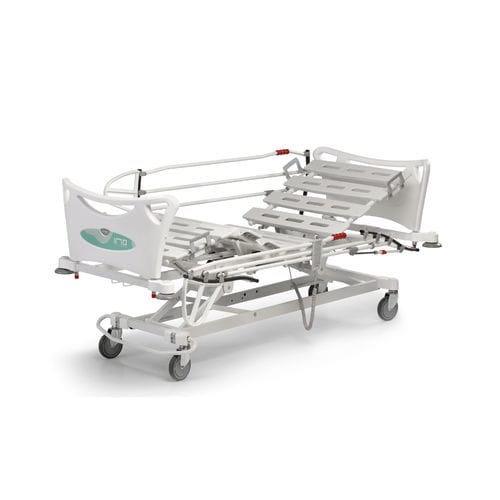

Hospital bed Matrix E20

medicalelectricmanual

The robustness and reliability of the entire system provide the necessary peace of mind for effective care, with therapeutic functions enhanced by programmed Auto-Contour and Cardiac Chair movements to reduce patient hospitalisation. Auto Contour Shock Vascular Cardiac Chair Lifting system by trapezoidal arms electrically articulated by 2 linear motors Linak brand. The lightness and reliability of this system make Matrix E20 a high-performance bed, ideal for any hospital ward Lifting stroke 390-763 mm and maximum patient load 250 Kg. Highly shock resistant Powered by helical cable. The hand-held control allows the medical positions Auto Contour, Trendelenburg and Reversed to be performed. The bed is equipped with the function Trendelenburg and Reversed Trendelenburg. This is performed by 2 linear electric motors brand Linak, with a maximum angle of inclination of 17° Combined with the Auto Contour function, it becomes possible to position the bed in Cardiac Chair. This position is very helpful in restoring the patient's motor skills and carrying out daily activities. The heightof the foot section is adjustable point by point by a rack for manual use. When combined with the leg section inclination and Trendelenburg, it can improve blood flow to the heart, a necessary procedure in reducing the risk of hypovolemic shock and after some vascular surgeries. The corners of the bed are equipped with shock-absorbing discs and fairings with ABS protections. The wheel carriers are also ABS-faired
