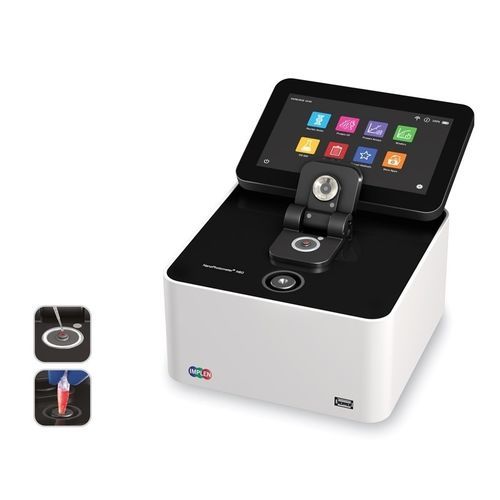

Optical spectrophotometer NanoPhotometer® N60

for nucleic acid quantificationfor protein analysisxenon

Linux based NPOS Intel Celeron dual core 2.4 GHz 64 GB Internal Data Storage 2x USB A, USB B HDMI, Ethernet, WiFi Windows 8, 10 (32 & 64 bit) OS X (Intel x86 and Apple M1) iOS and Android OS Display 1024 x 600 pixels Glove compatible touchscreen Built-in Battery Pack N60: Optional rechargeable lithium ion battery 95 Wh, 6.6 Ah, 8 h Min. charging cycles: 800 N50: Battery not included NanoVolume Performance Detection Range dsDNA - N60: 1 – 16,500 ng/µl N50: 5 – 7,500 ng/µl Detection Range BSA - N60: 0.03 – 478 mg/ml N50: 0.15 – 217 mg/ml Minimum Sample Size - 0.3 – 2 µl Photometric Range (10 mm equivalent) - N60: 0.02 – 330 A N50: 0.1 – 150 A Path Length - 0.67 and 0.07 mm Dilution Factor - 15 and 140 Vortex - N60: 2,800 rpm; tube size up to 2.0 ml N50: no vortex included Optical Specifications Measure Time For Full Scan Range - 2.5 – 4 seconds Wavelength Reproducibility - N60: ± 0.2 nm N50: ± 1 nm Wavelength Accuracy - N60: ± 0.75 nm N50: 1.5 nm Bandwidth - N60: < 1.5 nm N50: < 3 nm Absorbance Reproducibility - N60: (Lid 15): < 0.002 A @ 0 – 0.3 A @ 280 nm CV < 1% @ 0.3 – 1.7 A @ 280 nm N50: (Lid 15): < 0.004 A @ 0 – 0.3 A @ 280 nm CV < 1% @ 0.3 – 1.5 A @ 280 nm Absorbance Accuracy - < 1.75% @ 0.7 A @ 280 nm of the reading Stray Light - N60: < 0.5% @ 240 nm using NaI N50: < 2% @ 240 nm using NaI Optical Arrangement - 1 x 4096 CMOS Array Lamp - Xenon flash lamp Lifetime - 109 flashes, up to 10 yea General Specifications Operating Voltage - 90 – 250 V ± 10%, 50/60 Hz, 90 W, 18/19 VDC Certification - CE, IEC 61010-1:2012 and EN 61326-1:2013
