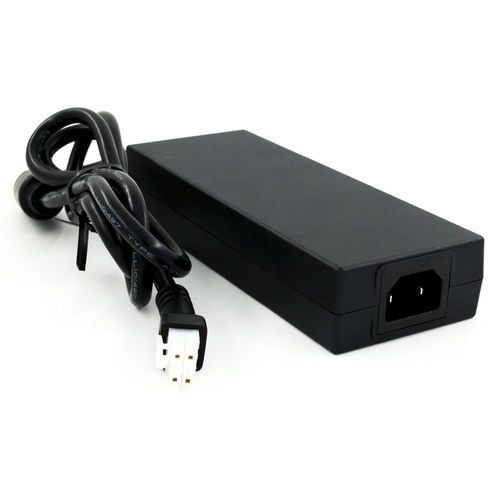

Connection type adapter ATM250Tfor medical devices
Add to favorites
Compare this product
Characteristics
- Type
- connection type
- Applications
- for medical devices
- Primary current
Max.: 20 A
Min.: 4.48 A
Description
- IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.1)
- EMC : IEC60601-1-2 : 2014 (Edition 4.0)
- IEC/EN/UL 62368-1 & IEC 60950-1
- 100-240 VAC Universal Input
- Gallium Nitride Based Design
- High Power Density : 11.1W / in3
- 230% higher than traditional adapter (4.9W / in3)
- With 250kHz Switching Frequency
- Means of Protection: 2 X MOPP
- Touch Current : < 100μA
- Efficiency up to 95%
- Single Output to 250W
- Regulated Output with Low Ripple Noise
- Modified and Custom Design Available
- 2 Year Warranty
Catalogs
ATM250TS
1 Pages
