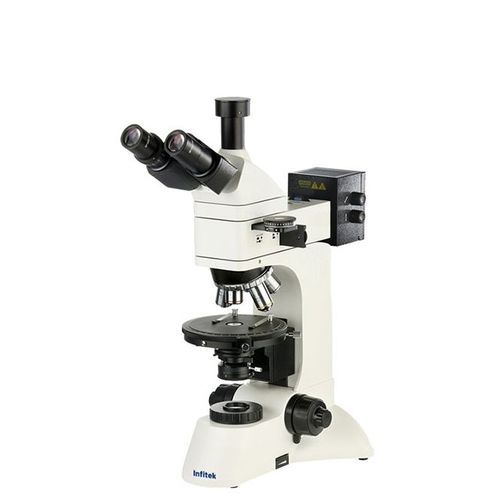

Polarizing microscope MSC-P3000

opticallaboratoryupright

Optics - Infinite Optical System Observation Tubes - Trinocular,interpupillary 55-75mm Viewing Head - Seidentopf head, inclined at 30° Optical Coating - Transmittance ≥ 95% Eyepiece Large field eyepiece:WF10X(Φ22mm) Graduated ocular: 10X(22mm), 0.10mm/div. Objective Stress-free plan achromatic objective lens( no cover glass) PL L5X/0.12 PL L 10X/0.25 PL L 40X/0.60(spring) PL L 60X/0.70(spring) Nosepiece - Quadruple nosepiece Bertrand Lens - Push-in bertrand lens Analyzer - Rotatable analyzer with gradation 0°-90°; Sliding in/out of optical path Optical Compensator - λ , λ/4 and quartz wedge compensator Stage - Diameter: φ150 mm, 360 ° equal scale, vernier scale 6 ‘, the center is adjustable, with lock device Condenser - Abbe condenser NA 1.25 with iris diaphragm&filter Focusing - Coaxial coarse&fine adjustment,fine division 0.002mm, with locking and limiting device Polarizer - 360° rotatable Illumination - 6V 30W halogen lamp, brightness adjustable Electricity - 100-240V AC,50/60Hz Package Dimension (W*D*H) (mm) -  360*320*680 *Optional - Microscope camera (Standard imaging software/*Petrographic software) / Win 10 Pad / Digital display
