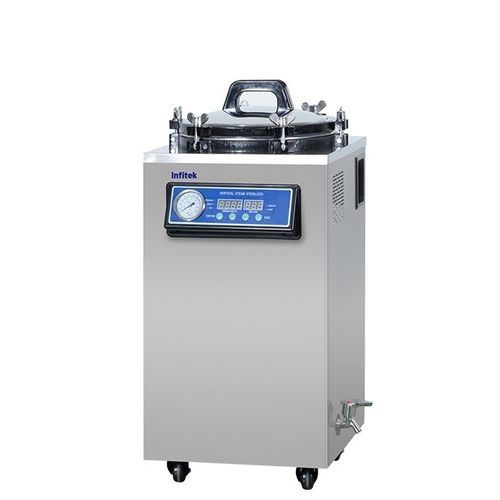

Medical autoclave STV-I series
surgicallaboratoryvertical

Medical autoclave - STV-I series - Infitek - surgical / laboratory / vertical
Medical autoclave - STV-I series - Infitek - surgical / laboratory / vertical
Medical autoclave - STV-I series - Infitek - surgical / laboratory / vertical - image - 2
Medical autoclave - STV-I series - Infitek - surgical / laboratory / vertical - image - 3
Medical autoclave - STV-I series - Infitek - surgical / laboratory / vertical - image - 4
Add to favorites
Compare this product


Characteristics

Applications
medical, laboratory, surgical
Configuration
vertical, on casters
Function
automatic
Sterilization chamber material
stainless steel
Capacity

Min.: 35 l
(9.25 gal)

Max.: 150 l
(39.63 gal)

Temperature range

Min.: 116 °C
(240.8 °F)

Max.: 134 °C
(273.2 °F)

Sterilization cycle time

Min.: 4 min

Max.: 120 min

Width

400 mm, 480 mm, 525 mm, 555 mm, 605 mm
(16 in, 19 in, 21 in, 22 in, 24 in)

Height

1,020 mm, 1,200 mm, 1,240 mm, 1,340 mm, 1,400 mm
(40.2 in, 47.2 in, 48.8 in, 52.8 in, 55.1 in)

Depth

Min.: 520 mm
(20 in)

Max.: 760 mm
(30 in)

Description

Autoclave sterilizer (also referred to as steam sterilizers) is used to sterilize surgical equipment, laboratory instruments, pharmaceutical items, and other materials. It can sterilize solids, liquids, hollows, and instruments of various shapes and sizes. So, the autoclave sterilizer is widely used in medical places and laboratories to help sterilization efficiently. Infitek STV-I Series Class N autoclave using steam from generator to create downward displacement, which pushes air out of the chamber. The vertical autoclave chamber is from 30 liters to 150 liters, it is particularly suitable for sterilizing unpackaged solid instruments. Bolt Digital Displayed Automatic Type High quality stainless steel material Microcomputer automatic control, arbitrary set of sterilization parameters Digital display and touch buttons Standard test interface Self-expanding seal The container with automatic protection function: over temperature protection; over pressure protection self discharge; low water level protection, anti dry burning With stainless steel bucket or basket The unique three-time temperature rise and fall program achieves higher steam saturation and significantly improves the sterilization effect. Buzzer reminder after sterilization, automatic stop. Automatic cooling air,sterilization end automatic exhaust steam Bolt structure Safety interlocking device Self-expanding seal Digital display and touch buttons Microcomputer automatic control, arbitrary set of sterilization parameters
