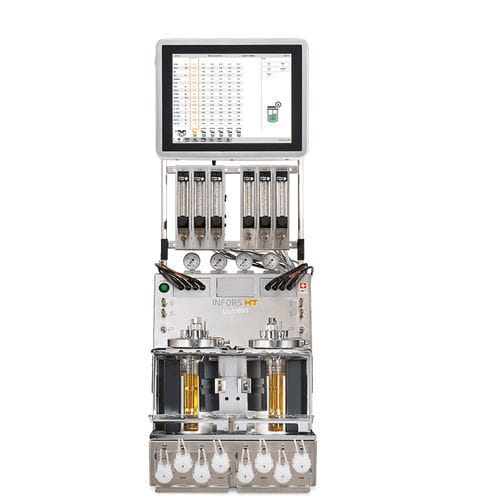

Laboratory bioreactor Multifors 2

for cell culturefor parallel synthesisautoclavable

Parallel bioreactor for bioprocess development With Multifors 2 you can work with up to six bioprocesses in parallel. Thanks to a selection of preconfigured packages and a variety of connection possibilities and options, you will be ideally equipped for optimizing sophisticated bioprocesses on a small scale. High-performance pumps Basic setup includes four precision pumps per culture vessel (option of one more) Autoclavable pump heads Gravimetric feeding (with external scale) Profile-based pump-speed control with eve® Culture vessels Culture vessels are easy to exchange Powerful magnetic drive Magnetic coupling reduces the risk of contamination and simplifies handling Top plate Motor underneath the vessel for excellent accessibility to available ports Up to 13 ports for sensors (antifoam, optical density, pH, pO2, redox, conductivity, live cell density, etc.) Gassing Customer-specific gassing with up to 5 gas lines Feed via rotameter or mass-flow regulator Cascades may be configured in serial or in parallel for controlling the pO2 via the stirrer speed, gassing rate, gas composition, etc. Sensors Customers may choose from digital (Modbus) or analog sensors. Product calibration of the pH sensor for reliable measurements during long-running bioprocesses If required, additional sensors and actuators can be connected. 12" Touchscreen Controller Touchscreen with integrated OPC server Reliable measurement and setting of the bioprocess parameters and communication with eve® Parallel management and control of up to six devices Up to 24 selectable parameters, such as temperature, stirring speed, pH, pO2, anti-foaming agent, feed
