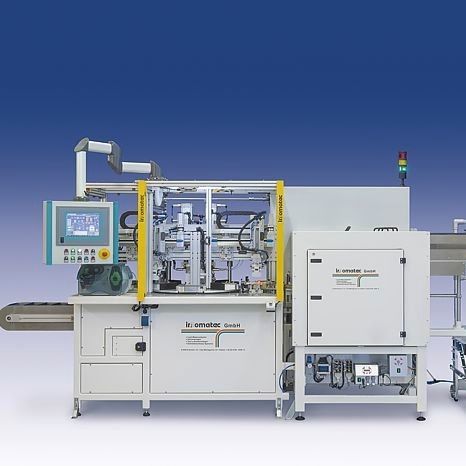

Vacuum leak tester

pressurefor the pharmaceutical industryautomatic

Fully automated eightfold helium leak testing of different pressure switch housings with circular control panel for 8 different versions of test piece. Supply of components via silo and separation of top-selling types using vibration conveyor. Optional loading and channelling of small batches possible. Facility for all stations to be changed quickly so that a type can be changed within 15 minutes. Fully automated test bench Automatic test piece adaption Cycle time 2.1/part Test pressure 25 against vacuum Detection limit 1 x 10-6 mbarl/s Up to 8 pieces accepted product-related helium chambers with sealing tools innomatec Helimix 100-20 helium/air mixing station Procedure for setting up for new type possible within 15 minutes Automatic marking of correct parts by means of infomarker and pointer Camera system for checking markings on parts present Automatic ejection of those parts rejected via synchronised conveyor belt Space-saving layout of vacuum pumps and measuring sensors under test bench on base frame allowing easy servicing Electrically operated high pressure sealing unit for generating the testing pressure Label printer for creating barcode labels for the parts' packaging Single helium leak testing of different car exhaust gas heat exchangers with chamber carousel for quick set-up with low system downtime. Automatic test piece adaption Up to 4 pieces accepted in product-related helium chambers with sealing tools Procedure for setting up for new type possible under a few seconds Automated marking of correct parts Ejection of rejected parts via conveyor belt Space-saving layout of vacuum pumps and measurement sensorsHelium mixing station
