PLC and computer-controlled test benches for leak testing with client-specific operator-interfaces are the ideal solution for many tasks. This is particularly the case if:
The wide variety of types of test pieces requires different procedures or sets of parameters
A large number of different measurements such as pressure curves, times, mechanical and electrical values etc. are to be taken
Process checks and documentation are required
Computer-controlled leak testing for commercial vehicle brake parts. All adjustment and testing procedures are fully automated.
Sealing Tests
Flow Tests
Pressure and time tests
Control unit settings
Functional tests

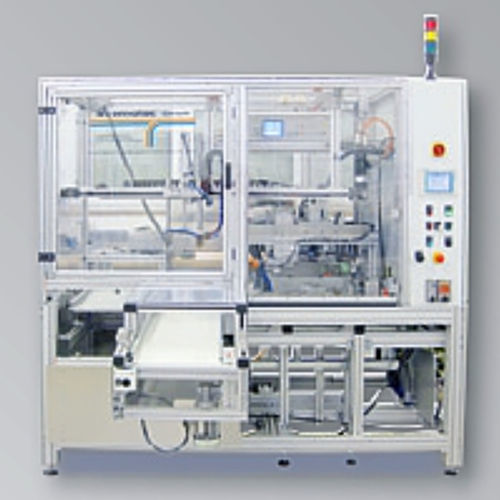

Threefold fully automated high pressure leak testing for ESP lines. Line lengths from 300mm-2,400mm. Measurement data visualised by Siemens OP 17 Control via Siemens S7 / 300.
Manual and automatic operation
Resolution of measurement 1 Pa
High pressure measurement technology for 200 bars
Marking of the tested “good” tubings
Forced ejection depending if passed or rejected Parts
Automatic acceptance of lines from production unit
Automatic operation of sealing instruments when line length changes
Lateral movement for removing from the production plant and passing to the test station
