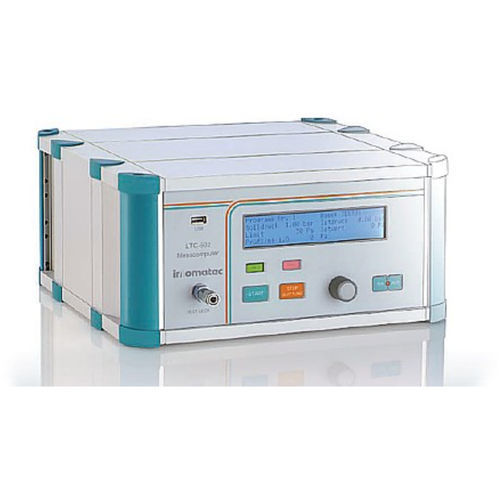

Vacuum leak tester LTC-502

pressureflowfor the pharmaceutical industry

The LTC-502 leak measuring computer/leak tester is the ecological entry-level model of our successful series of leak testing devices. It can be delivered for all leak measuring procedures (pressure difference, flow, compensation and reference methods) and measurements of volume. Test pressures - from vacuum to 20 bar positive pressure Leak rates - for all types of operational thicknesses Test times - in the millisecond, seconds and minute range Test volumes - from a few millimetres to 10 litres Pressure differences - from 0.1 Pa to 5,000 Pa Environmental conditions - with particular adjustments for a number of industries (temperature etc.) User management is provided with the option of user-defined adjustments to the language and units of measurement. A ring buffer (FIFO) safeguards the last 2,000 measurement results. The LTC-502 leak measurement computer/leak tester can be set up with all types of mass storage device and hard drives. It can be integrated into fully automated test machines with the help of a number of interfaces and procedures and is able to control small devices. The unique analogue model with the 24 bit S/D converter allows a previously unachievable breakdown of the measurement signal into over 1 million levels. This means a wide range of additional information for tracking the measuring process and the optimum reproducibility of the measurements, even over a very wide measuring range and saves on otherwise elaborate and expensive adjustments to hardware.
