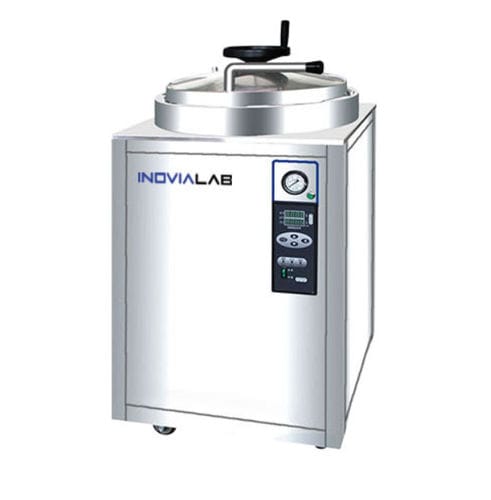

Medical autoclave INOAClave-HV
verticalelectric

Medical autoclave - INOAClave-HV   - INOVIALAB - vertical / electric
Medical autoclave - INOAClave-HV   - INOVIALAB - vertical / electric
Medical autoclave - INOAClave-HV   - INOVIALAB - vertical / electric - image - 2
Medical autoclave - INOAClave-HV   - INOVIALAB - vertical / electric - image - 3
Medical autoclave - INOAClave-HV   - INOVIALAB - vertical / electric - image - 4
Medical autoclave - INOAClave-HV   - INOVIALAB - vertical / electric - image - 5
Add to favorites
Compare this product


Characteristics

Applications
medical
Configuration
vertical
Function
electric
Capacity

Min.: 35 l
(9.25 gal)

Max.: 200 l
(52.83 gal)

Temperature range

Min.: 105 °C
(221 °F)

Max.: 134 °C
(273.2 °F)

Width

450 mm, 510 mm, 560 mm, 650 mm
(18 in, 20 in, 22 in, 26 in)

Height

Min.: 1,010 mm
(39.8 in)

Max.: 1,700 mm
(66.9 in)

Depth

450 mm, 470 mm, 560 mm, 650 mm
(18 in, 19 in, 22 in, 26 in)

Description

In environments such as hospitals and laboratories, it can be used to store surgical instruments, various items, dressings and etc. It is widely used to make the units germ-free (sterilized). It can also be used in chemistry to examine how some substances will react under strong pressure. Security Features; 1. The safety valve can open automatically to release the pressure at the moment of overpressure. 2. The sensors will automatically shut down the system when it detects an excessive temperature. 3. Sensors placed to control the door status will not start working when the door is open and at the same time, if the door is opened during operation, it will immediately stop working. 4. When the water reaches a very low level, the system shuts down and an error code is displayed on the screen. 5. Overvoltage or electrical leakage protection apparatus-air switch. 6. The door is covered with safety shell made of heat-insulating material, which can protectthe operator from heat burning and looks beautiful. Technicial Specifications: 1. Optional printer to save sterilization data. 2. LED screen displays all steps of the complete operation and error codes. 3. Independent quick service window, easy for repair and maintenance. 4. Automatic selection of fast or low exhaust to avoid overflow of sterilization liquid. 5. Dressing, equipment, rubber, culture medium, waste, etc. sterilization programs. 6. Handwheel type quick-open door structure, self-expanding sealing ring, easy operation and safe. 7. Complete water filling, dynamic pulse exhaust, heating, sterilization, draining and drying work automatically.

Catalogs

No catalogs are available for this product.

See all of INOVIALAB‘s catalogs
