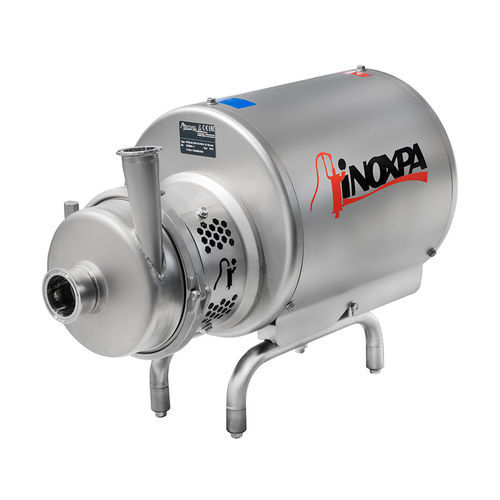

Pump for the pharmaceutical industry PROLAC HCP

centrifugalcompactclose-coupled

Due to the choice of materials and its design, hygienic centrifugal pump PROLAC HCP is appropriate for applications requiring a high level of hygiene, gentle handling of the product and resistance to chemical agents. This centrifugal pump is particularly suitable as main process pump in the dairy, beverage, pharmaceutical and cosmetic industries. The pump is authorized to carry 3-A symbol. Note: Consult the options of the pumps authorized to carry 3-A symbol. Design and features PROLAC HCP is a range of close-coupled centrifugal pumps with hygienic design, compact and highly efficient. It is made of a cold-formed stainless steel casing, impeller, mechanical seal, pump cover, lantern and shaft, connected to the motor shaft by mechanical compression. The motor complies with the IEC standards, it is protected with a stainless steel shroud and provided with the height adjustable hygienic designed legs. The pump is designed according to the EHEDG recommendations. It can easily be cleaned by CIP/SIP systems without disassembly. The pump is authorized to carry 3-A symbol. Note: Consult the options of the pumps authorized to carry 3-A symbol Mechanical seal The PROLAC HCP centrifugal pump is provided with an internal single mechanical seal. The seal is balanced and has a hygienic design. As standard, the stationary part is in carbon and the rotary part is in silicon carbide, the gaskets are in EPDM. However, when required, other material can be used.There is also an option of assembly of a double mechanical seal made of two identical seals.
