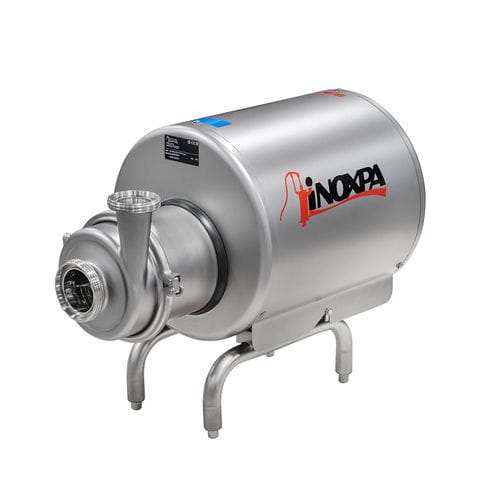

Pump for the pharmaceutical industry HYGINOX SE

centrifugalcompactclose-coupled

The sanitary and cost-efficient design of the Hyginox SE centrifugal pump makes it particularly suitable as main process pump in the dairy, beverage, pharmaceutical and cosmetic industries. Design and features Hyginox SE is a close-coupled food-grade centrifugal pump with sanitary design, compact and efficient. It is made of a cold-formed stainless steel casing, stainless steel open impeller (investment casting), mechanical seal, pump cover, lantern and shaft, connected to the motor shaft by mechanical compression. The motor complies with the IEC standards, it is protected with a stainless steel shroud and provided with the height adjustable hygienic designed legs. Triphasic induction motor with B34 flange (B35 for motor frame 132 and above), in compliance with the IEC standards, 2 poles = 3000/3600 rpm, efficiency class according to EC regulation, IP 55 protection and F-class insulation. Materials Parts in contact with the product Stainless steel AISI 316L (1.4404) Other steel parts Stainless steel AISI 304 (1.4301) Gaskets in contact with the product EPDM (according to FDA and EC 1935/2004) Single internal mechanical seal EN 12756 l1k (according to FDA and EC 1935/2004): Rotary part Carbon (C) Stationary part Silicon carbide (SiC) Gaskets EPDM Surface finish: Internal Ra<0,8 μm External Matt Connections: DIN 11851 Options SiC/SiC mechanical seal. Gaskets: FPM and PTFE. Jacketed pump housing. Drain port. Other connection types. Motor with other voltages, frequencies, protection classes and efficiencies. Trolley and/or control panel. ATEX certification.
