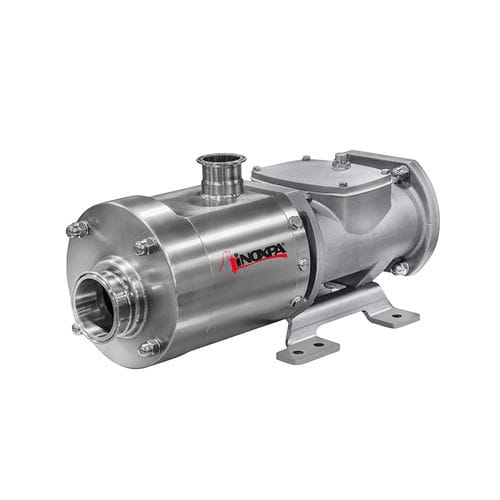

Suction pump DCH+

for the pharmaceutical industryscrewhygienic

The DCH+ is a twin screw pump, with hygienic design, suitable for use in the dairy, food and beverage, cosmetics, etc. The flow is uniform and in an axial direction, so there are no changes of volume or physical properties of the product. Therefore it is an ideal pump for handling shear-sensitive fluids. It has a high suction lift capability with very low NPSH values. It is capable of pumping liquids with high viscosity, but also with low viscosity, so it can be used as a CIP-supply pump. The design ensures a fully cleanability and drainability. Design and features The DCH+ pumps are available in bare shaft construction and designed according to the EHEDG recommendations. They are built with a sturdy design, ensuring durability, quiet operation, and minimal pulsation during pumping. The mechanical seals have a hygienic design. Motor or gear motor with B3 legs, in compliance with the IEC standards. Efficiency class according to EC regulation, IP 55 protection and F-class insulation. Materials Parts in contact with the product 1.4404 (AISI 316L) Gear casing Stainless steel Gaskets EPDM Mechanical seal Rotary part silicon carbide (SiC) Stationary part silicon carbide (SiC) Surface finish Internal Ra ≤ 0,8 μm External matt Connections DIN 11851
