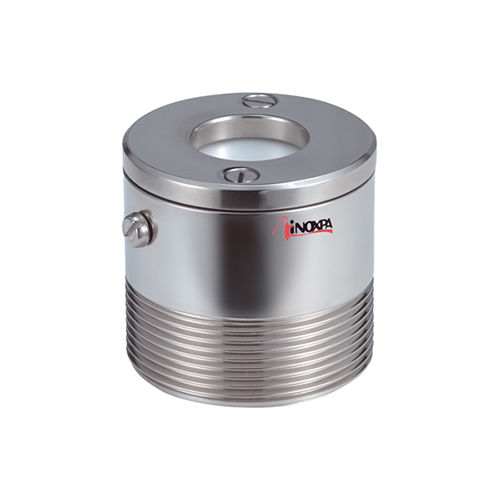

Food valve 7550 pressure poweredfor foodvacuum
Add to favorites
Compare this product
Characteristics
- Medium
- for food
- Fluid specification
- pressure powered
- Applications
- for food, beverage, vacuum, chemical
- Body
- compact, stainless steel, NBR
- Other characteristics
- standard, ISO
- Pressure
1 bar
(14.5 psi)- Temperature
60 °C
(140 °F)
Description
Pressure-vacuum valve is a valve designed to maintain atmospheric pressure inside the tank while it is being filled or emptied.
Pressure-vacuum valve is widely used in the food-processing, wine-making, cosmetics and chemical industries as well as in the beverage and oil production.
Operating principle
The pressure-vacuum valve is designed to breathe in while the tank is being emptied to equal the pressure inside and outside the tank and protect the tank from vacuum.
When the tank is being filled, the pressure-vacuum valve allows air to come out, thus avoiding excess pressure inside the tank which would cause the tank to swell.
Design and features
Available sizes: 2" y 2 ½".
Easy disassembly.
Compact design.
Standard connections: G type thread (ISO 228).
Materials
Stainless steel parts AISI 316L
Spring AISI 302
Casing POM
Gasket NBR
