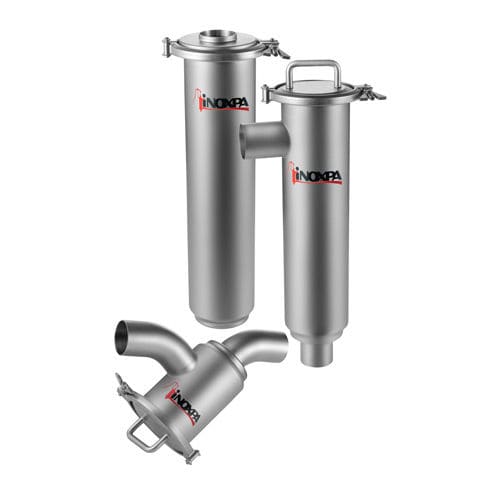

Particulate filter 81700

for liquidsfor the pharmaceutical industry

Filters have a wide range of applications in the food-processing, cosmetics and some chemical industries as well as in auxiliary services of the pharmaceutical industry. They have a hygienic design and are used to filter particles capable of damaging pumps and other equipment. Operating principle The filter basically consists of a filter body with an inlet and an outlet for the product. The screen is fixed inside the body. The screen retains all particles that are equal or larger than the size of the screen openings. Design and features There are several configurations: - Cleaning of the screen without disassembling the filter: Angular filter (82700): the inlet and the outlet form a right angle. Y filter (83700): the product enters and leaves the filter in the same direction. - Cleaning of the screen disassembling the filter: Straight filter (81700): the product enters and leaves the filter in the same direction. Low pressure drops. DIN 11850 standard connections. Screen with circular (from Ø 0,5 mm to Ø 5 mm) or longitudinal openings (10 x 1 mm). Materials Filter body AISI 316L Gaskets EPDM Internal surface finish Ra ≤ 0,8 μm External surface finish Matt Options Gaskets in FPM. Other connection types. Y filter Clamp OD 6″. Wedge wire screen cylinder. Heating jacket. Option of filtering from outside to inside of the screen. Double filter.
