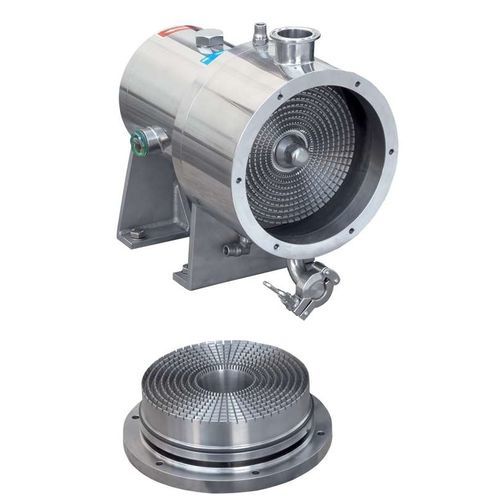

Mixer for the pharmaceutical industry 8100X

for chemical productsfor the cosmetics industryfor the food industry

The 8100X series multitooth mixers are employed in the applications requiring high shear for achieving a thorough emulsification. Until now mills and homogenisers have been used for production of high quality emulsions. The 8100X series high shear emulsifier achieves similar results and present a more hygienic solution at a lower price. Among the products that can be prepared with this high shear emulsifier mixer there are mayonnaises, high quality body care products, pharmaceutical and veterinary solutions. Operating principle The traditional rotor/stator mixers produce point shear at the moment the rotor drives the product through the slots of the stator, and the 8100X series mixers are made up of many concentric rows of teeth. The product enters through the centre of the mixer and moves outward through the radial channels between the rotor/stator teeth. Tolerances are very close, and the tip speed (up to 50 m/s) and the shear rates are very high. Design and features High shear. Particle size reduction to less than 10 micrometer. Tip speed up to 50 m/s. Sealing system: sanitary single cooled mechanical seal. Adjustment of different tolerances between the rotor and stator. CIP compatible design. Standard connections: Clamp ISO-2852. Assembly with pulleys and belts. Clamp drain port. Motors: IEC B3, IP 55, F class insulation, Materials Parts in contact with the media: AISI 316L Other steel parts: AISI 304 Seal (standard): C / SiC Gaskets (standard): EPDM Surface finish: electropolished, Ra 0.8 Options Double mechanical seal. Other mechanical seal and gasket materials. Connections: DIN 11851, SMS, RJT, … Motors with other protections. Control panel.
