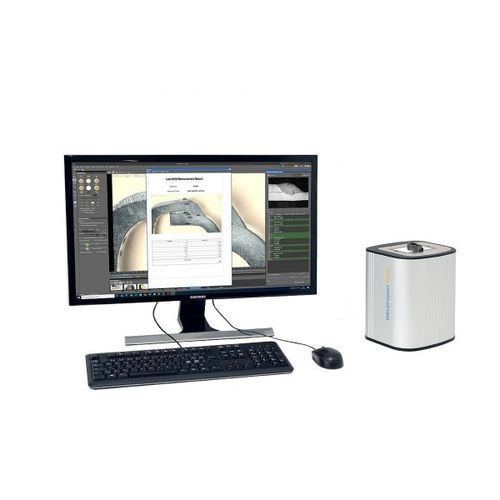

Optical microscope HD-240

digitalinspectioninverted

Dedicated digital inverted microscope with Full HD image quality. Large field of view range, ~ 84 to 3 mm (~3.3” to 0.12”), equivalent to ~2.5x to 71x optical magnification or ~ 7.2 to 205x on screen magnification. Developed for Ease-of-Use Turn on the WELDinspect, start INSPECTIS© software and place the prepared sample on top of the device. The inverted, pre-calibrated optical system ensures that the sample is imaged brightly and sharply without any effort. Dedicated Software Powerful and customizable Nikon Metrology NIS-Elements software with user-friendly sequential measurements, pre-defined weld templates and step-by-step instructions. Developed with emphasis on Quality and Cost Efficiency All-in-One optical inspection system with x26:1 motorised zoom lens and swift auto-focus designed for performing reliable weld bead analysis, measurement, and documentation. Upgradeable with x35 zoom optics providing ~ 54.3 to 1.66 mm (~2.14” to 0.065”) FoV, equivalent to ~3.9x to 127x optical magnification or ~11.2 to 367x on screen magnification. Modern and cost-effective inverted imaging system with high performance and robust design. Robust Desgin for Ease-of-Use Turn on the WELDinspect, start the software and position the prepared sample on its aperture window. The inverted calibrated optical system ensures the sample to be imaged sharply without any effort. The robust aluminium housing with steel base-plate and stainless-steel top-plate creates maximum stability and hazzle free operation. A microscope cover is included for protection of the device aginst dust when not in use.
