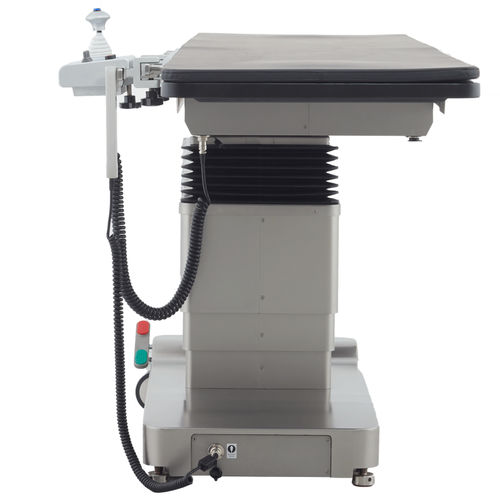

Electric examination table OT80.30

height-adjustableTrendelenburgreverse Trendelenburg

Inspital mobile imaging table OT80.30 is designed to provide excellent X-ray transparency with its lightweight carbon fibre tabletop, while maintaining high load-bearing capacity. OT80.30 offer maximum imaging quality at low radiation and ideal solutions for surgical and interventional radiology. A visco pad ensures a high level of patient comfort. Floating carbon fibre table top Floating carbon fibre tabletop with longitudinal sliding of 790 mm and transversal of 215 mm or bidirectional by a precision joystick. Radiolucent factor Radiolucent factor of the carbon table top at ≤ 0.43 mm AL equivalent. The low X-ray absorption enables clear imaging, reduction of radiation dose and thus ensures lower radiation exposure for patients and users! This also helps to extend the life of X-ray unit's spheroid tube. 360° imaging capability at a length of 1,100 mm ensures ideal imaging for various applications and surgeries. Compatible with digital and conventional X-ray units. The low base, which allows an ideal C-arm access, and column cover are made of high quality, durable stainless steel. Easy mobility due to 4 castors. Height adjustment, tilting, Trendelenburg and smooth longitudinal and transversal sliding are controlled via a wired hand switch or a control panel with a precision joystick assure and ideal patient positioning. SPECIFICATIONS Length of imaging: - 1860 mm Longitudinal slide: - 790 mm Lateral slide: - 215 mm Trendelenburg: - -18° / +18° Lateral tilt: - -15° / +15°
