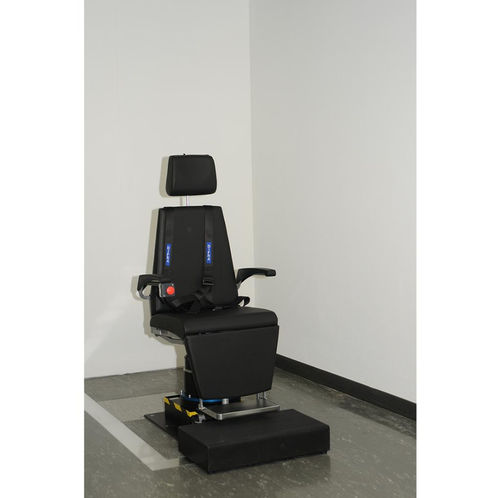

Rotary chair MegaTorque

Megatorque is a rotary chair with an Off Vertical Axis Rotation (OVAR) possibility. In addition to possibilities offered by MiniTorque, Megatorque allows to run otolith tests. The rotation axis of the patient can be moved from 0 to 15° from the vertical. The off axis angle is controlled by software and electronically adjusted during the rotation of the seat. Accessories 56 contacts slip rings for ENG, VNG, video surveillance, patient stop button, ocular fixation light,... Operator emergency switch Patient stop button Fixation light Head fixation system Specific desk for the operator Technical specification Motor torque: 120Nm Maintenance free rotation motor Sinus frequency: 0.001 to 10 Hz Sinus amplitude: 0 to 65000° Sinus damping: 0 to 100% Velocity: 0 to 240°/s Acceleration: 0 to 240°/s² Position: 0 to 360° OVAR angle: 0 to 15° Connection: NAC Maximum patient's weight: 150 kg Weight (without patient): 400kg Power supply: 3x400V+N+E AC 50Hz
